MULTIGRIP BASE AND TOP JAWS

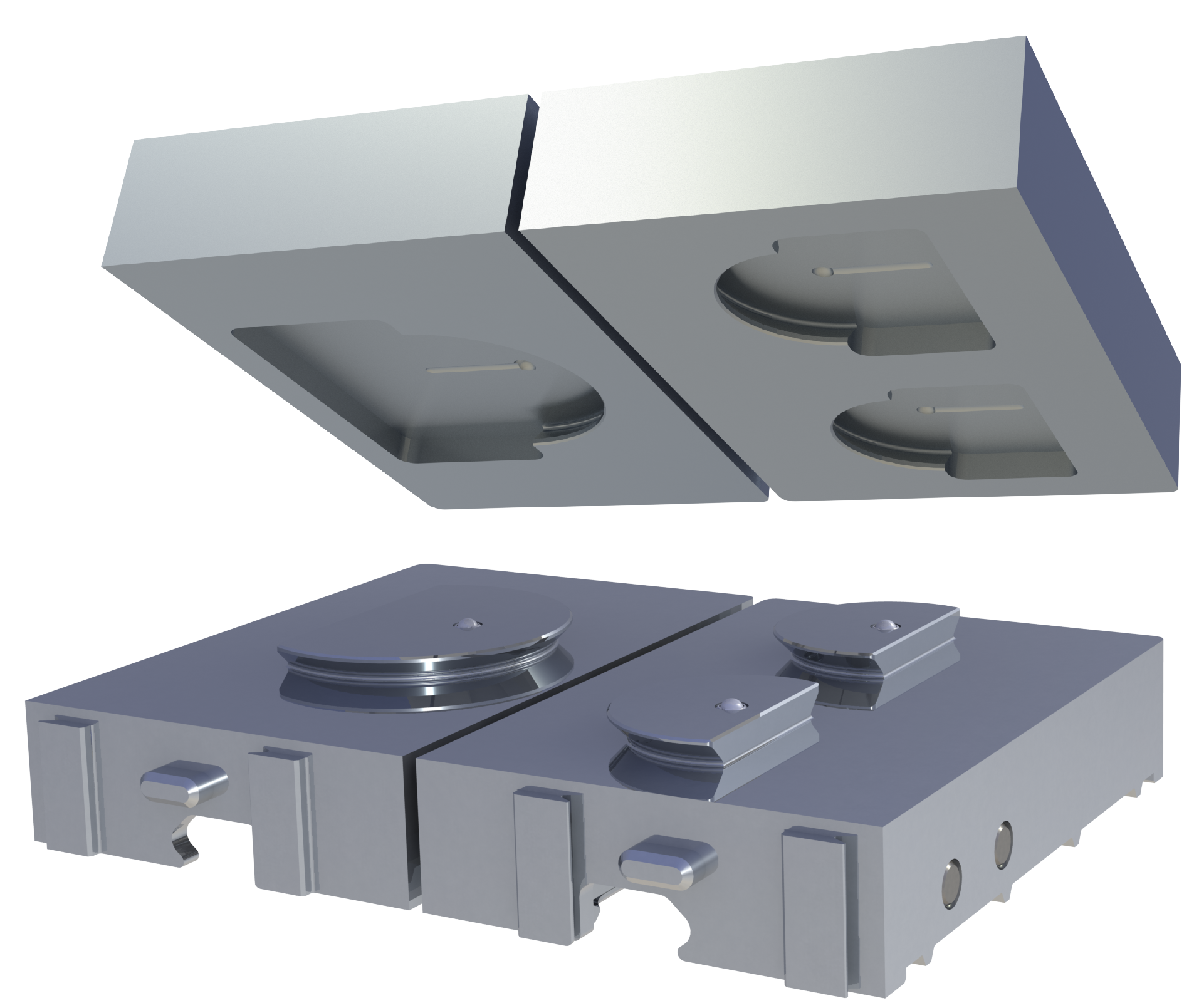

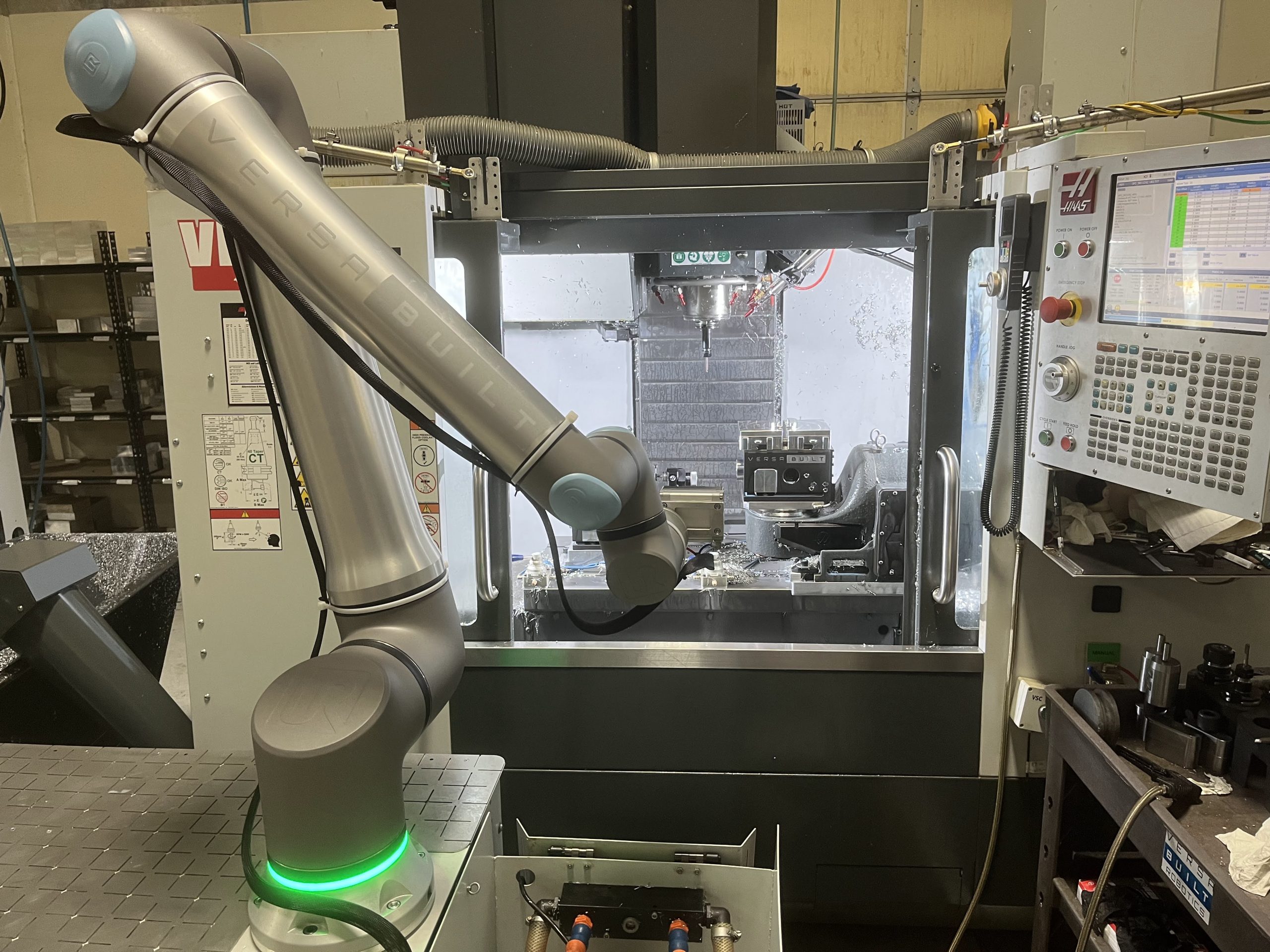

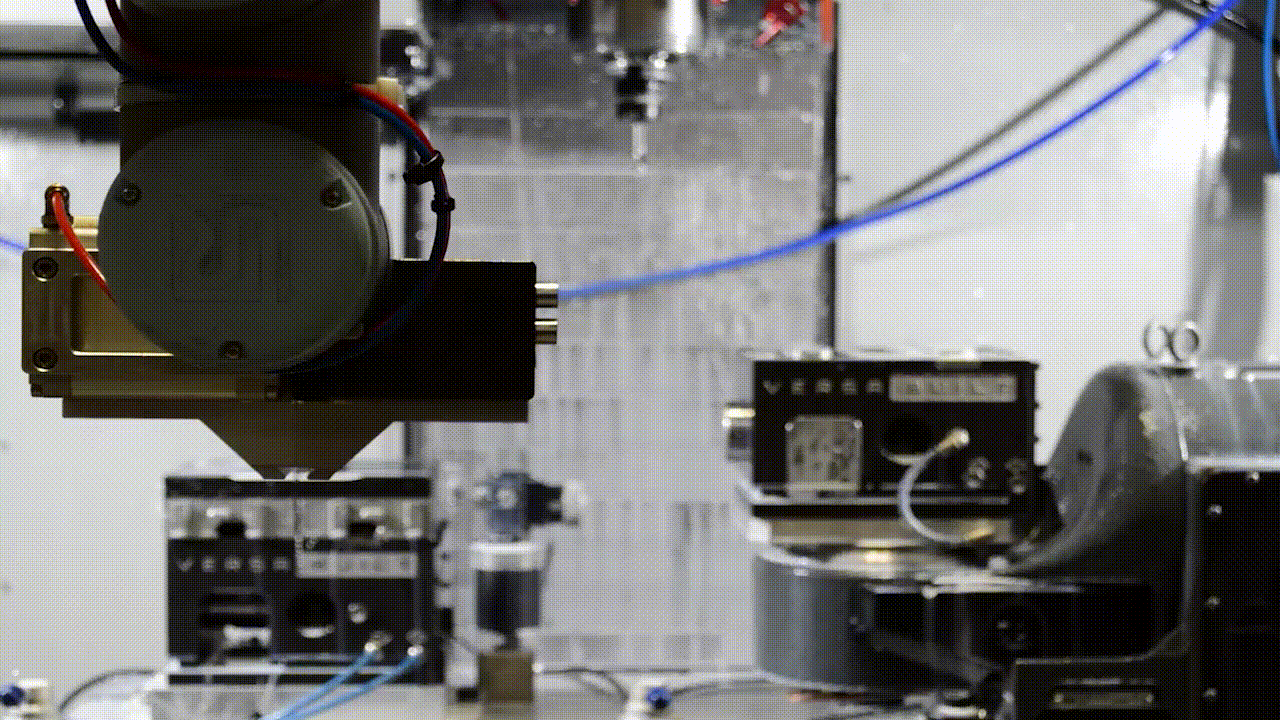

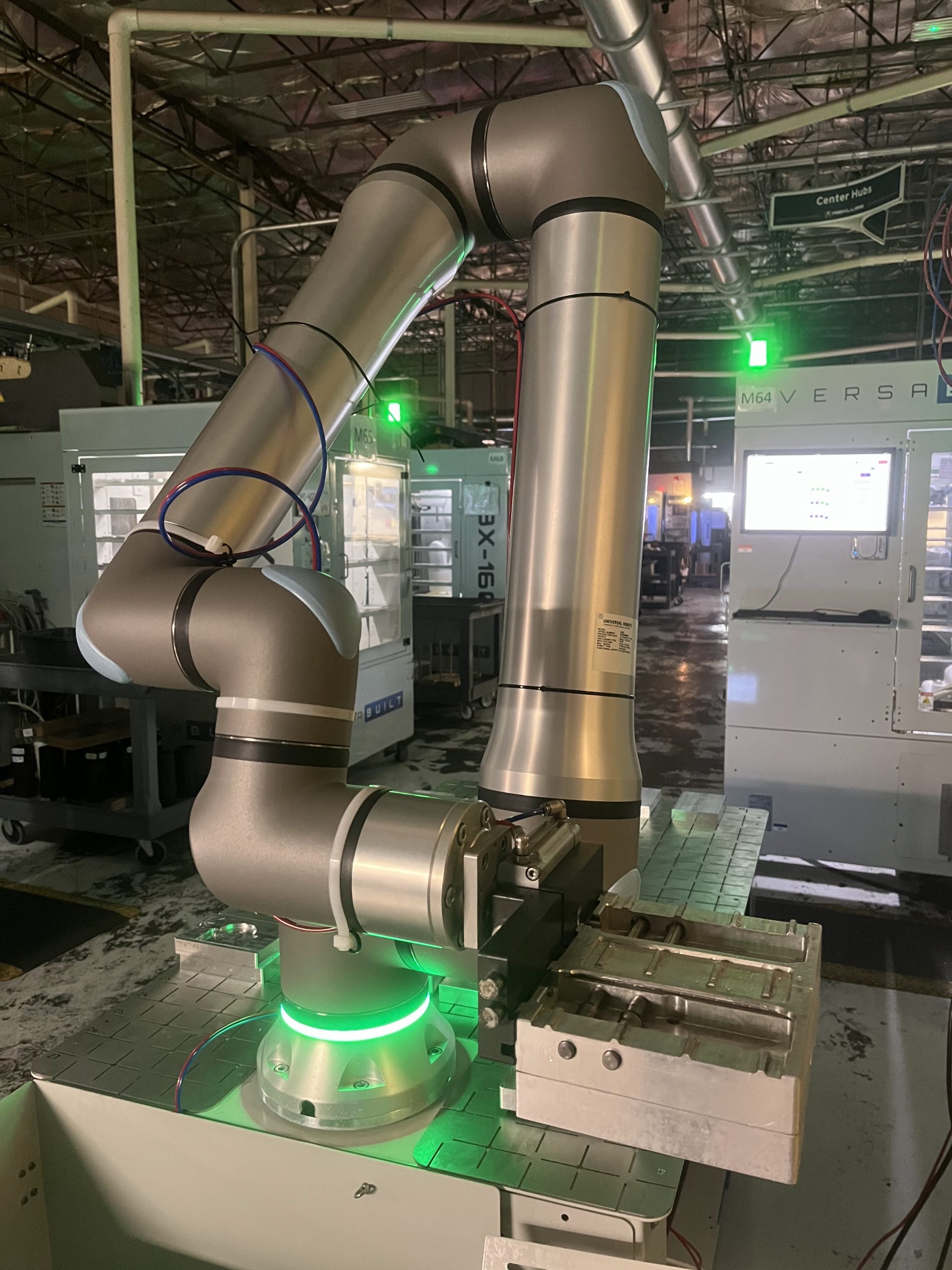

MultiGrip Jaws are at the core of both quick-change manual workholding and high-mix, multi-operation mill automation. Precision-machined from 6061-T6 aluminum, MultiGrip Jaws support a wide range of workholding configurations through inserts, VersaBites, and customizable accessories.

Each set of MultiGrip Jaws includes:

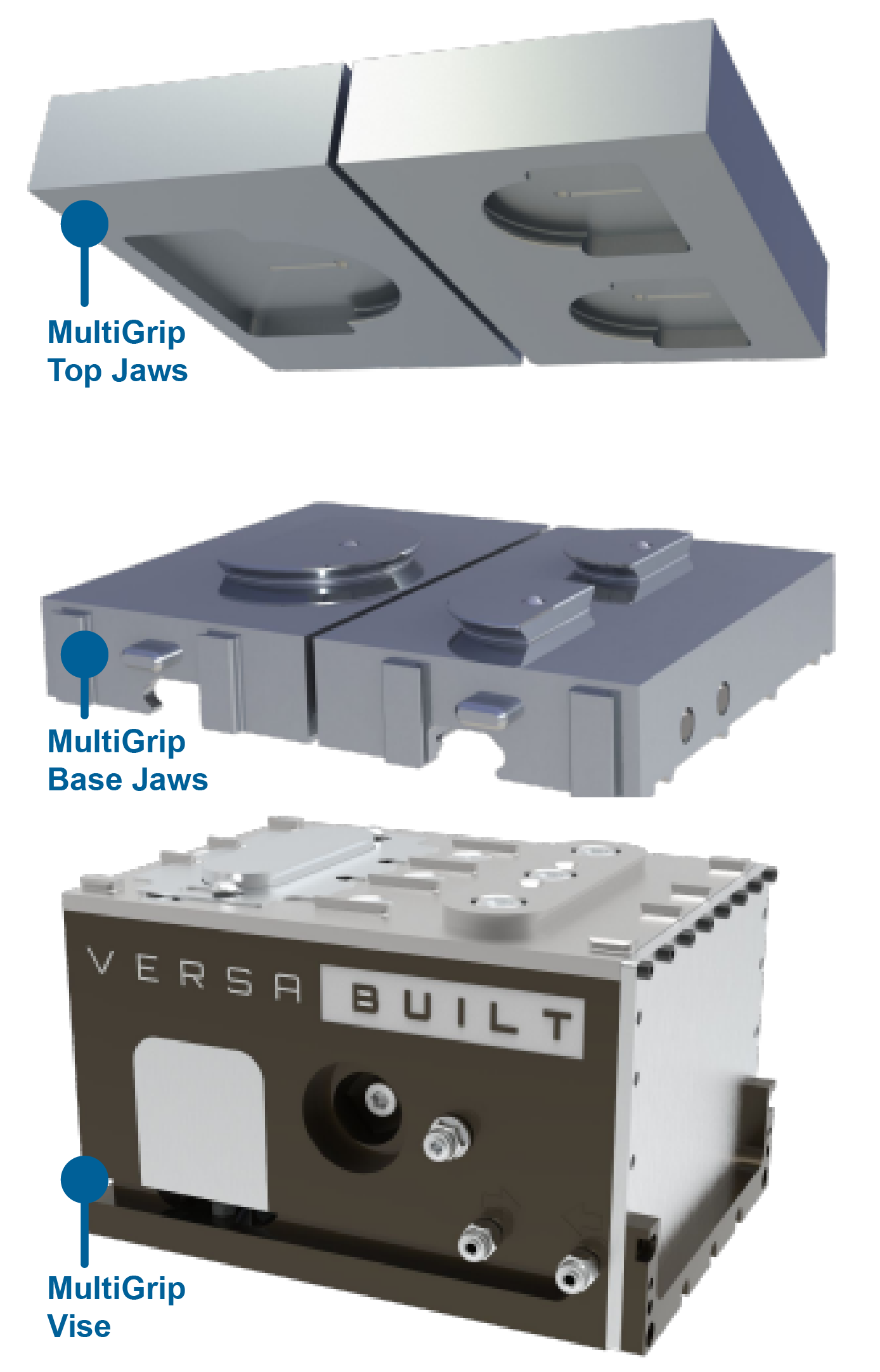

MultiGrip Vise Interface – for secure, repeatable clamping in the MultiGrip Vise
MultiGrip Gripper Interface – enables automated jaw loading/unloading and part transfer
Machinable Top Surface – create part-specific or geometry-specific pockets

MultiGrip Jaws are available in configurations for:

OD and ID clamping
Fixed, Monolithic Left and Right Jaws, or Base Jaws plus Exchangeable Top Jaws
Pallet loading

For complete setup, usage, and machining instructions, refer to the MultiGrip Machinist Manual available on our Resources page.

MultiGrip Jaw Products and Options

Refer to the Price Sheet link at top of page for latest pricing.

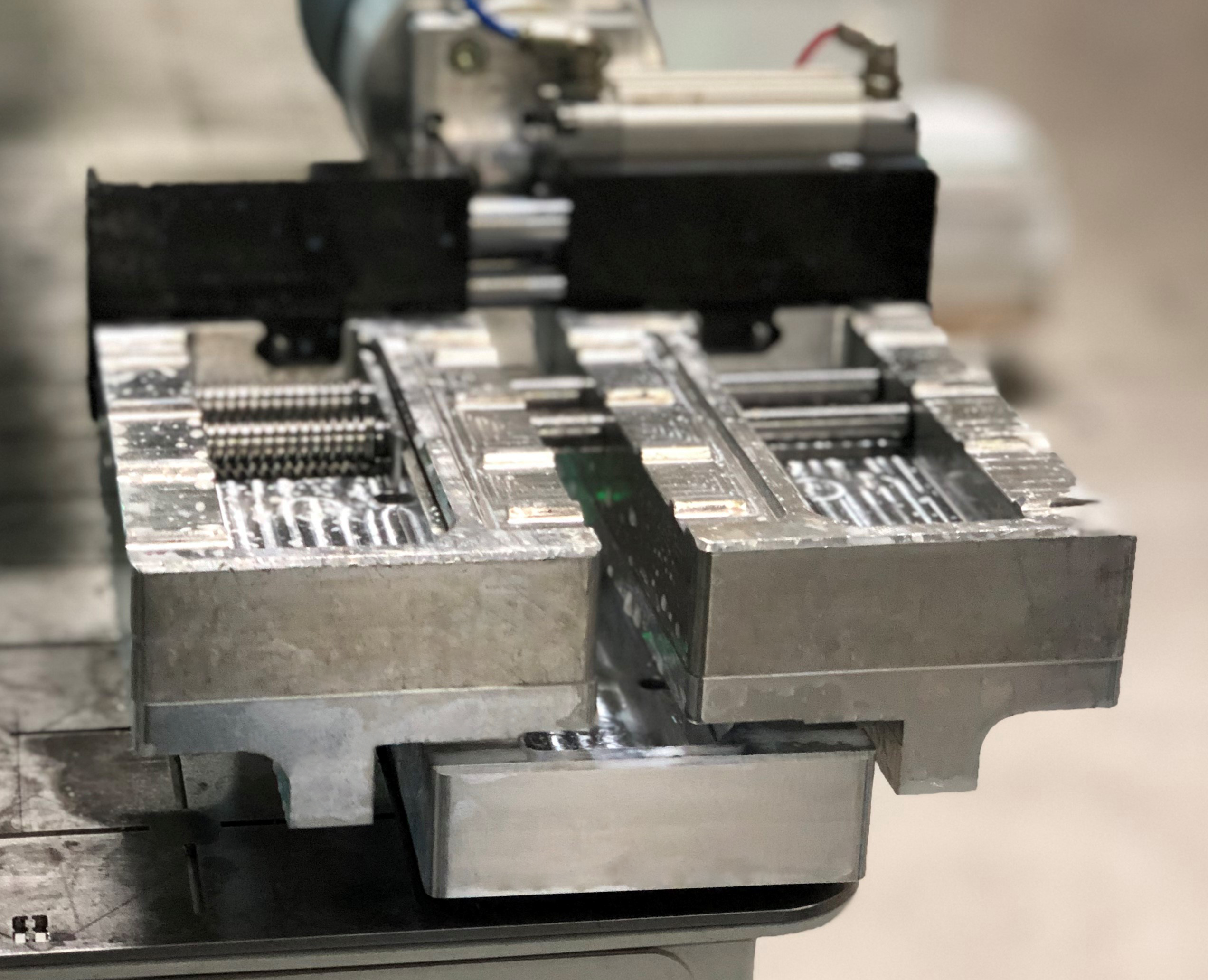

Base Jaws, OD Clamping

MultiGrip Base Jaws, Swivel-Fixed, OD – P/N 5010220CAD
MultiGrip Base Jaws, Fixed-Fixed, OD – P/N 5010398CAD

Fixed Jaws, OD Clamping

MultiGrip Jaws, 1.5″ H, OD – P/N 5010221CAD
MultiGrip Jaws, 2.5″ H, OD – P/N 5010222CAD

Fixed Jaws, ID Clamping

MultiGrip Jaws, 1.5″ H, ID – P/N 5010301CAD
MultiGrip Jaws, 2.5″ H, ID – P/N 5010302CAD

Top Jaws, OD Clamping

Top Jaws OD, Swivel-Fixed, 1.0″ H – P/N 5006796CAD
Top Jaws OD, Swivel-Fixed, 1.5″ H – P/N 5002752CAD
Top Jaws OD, Swivel-Fixed, 2.0″ H – P/N 5006795CAD
Top Jaws OD, Swivel-Fixed, 3.0″ H – P/N 5009398CAD
Top Jaws OD Oversized, Swivel-Fixed (10″ wide x 8″ deep x 1.5″ thick) – P/N 5007394CAD
Top Jaws OD, Fixed-Fixed, 1.0″ H – P/N 5010399CAD
Top Jaws OD, Fixed-Fixed, 1.5″ H – P/N 5010400CAD
Top Jaws OD, Fixed-Fixed, 2.0″ H – P/N 5010401CAD
Top Jaws OD, Fixed-Fixed, 3.0″ H – P/N 5010402CAD

Universal Jaw Products

Universal Top Jaws, Swivel-Fixed – P/N 5007070CAD
VersaRail Set, Machinable – P/N 5009630CAD
VersaBite, 1/8″ Z-Depth – P/N 5009847CAD
VersaBite, 3/16″ Z-Depth – P/N 5009679CAD

MultiGrip Pallet Jaws

MultiGrip Pallet Base Jaws – P/N 5010770CAD
MultiGrip Pallet Top – P/N 5010779CAD

Machining & Setup Tools

MultiGrip Jaw Hand Load Tool – P/N 5009116CAD
ID Jaw Setup Fixture – P/N 5007434CAD
ID Jaw Setup Dogbone – P/N 5003266CAD
Y-Push Tool – P/N 5002202CAD
Z-Push Tool – P/N 5002394CAD

Accessories & Assembly Components

MultiGrip Calibration Jaws – P/N 5010283CAD
MultiGrip OD Jaw Cross-Pin – P/N 5000805Image
MultiGrip ID Jaw Cross-Pin – P/N 5001260Image
MultiGrip OD Jaw Spring – P/N 5005794McMaster-Carr
MultiGrip ID Jaw Spring – P/N 5000808McMaster-Carr
MultiGrip Jaw Retaining Rings – P/N 5000803Image McMaster-Carr
MultiGrip Base Jaw Ball Plunger – P/N 5002080Image McMaster-Carr
MultiGrip Jaw Spring Assembly ToolMcMaster-Carr

Features

6061-T6 Aluminum Jaws

Automation-enabled CNC workholding with quick-exchange features for gripper and vise

Manufactured using precision 5-axis CNC

Jaw repeatability of 0.0005” (robot or hand loaded)

Low-cost consumable Top Jaws

Fast part change-over

Robot or hand load

OD (outside diameter) or ID (inside diameter) clamping options
