MultiGrip Vises

MultiGrip Vises are pneumatic, automation-ready vises designed for use with MultiGrip Jaws, enabling both manual and fully automated quick-change jaw configurations. Engineered for seamless integration with CNC automation, MultiGrip Vises offer a reliable, high-performance workholding solution for both robotic and hand-tended applications.

When paired with an automation system built around the MultiGrip Method, you unlock key advantages:

  • Automate virtually any part geometry – if you can hold the part in jaws, you can pick and place with MultiGrip.
  • Simplified Op-to-Op transfers – eliminate the need for regrip or flip stations.
  • Faster new part integration – get automation running with minimal setup time.
  • Quick part changeovers – maximize flexibility and reduce downtime.
  • Enhanced reliability – robust, repeatable workholding that’s proven in automation.

MultiGrip Vises are also compatible with traditional robot grippers, providing maximum flexibility for your automation approach.

Whether you’re increasing efficiency in a manually loaded CNC setup or deploying a fully automated system like the VersaBuilt Mill Automation System, the MultiGrip Vise delivers the speed, precision, and reliability modern machine shops demand.

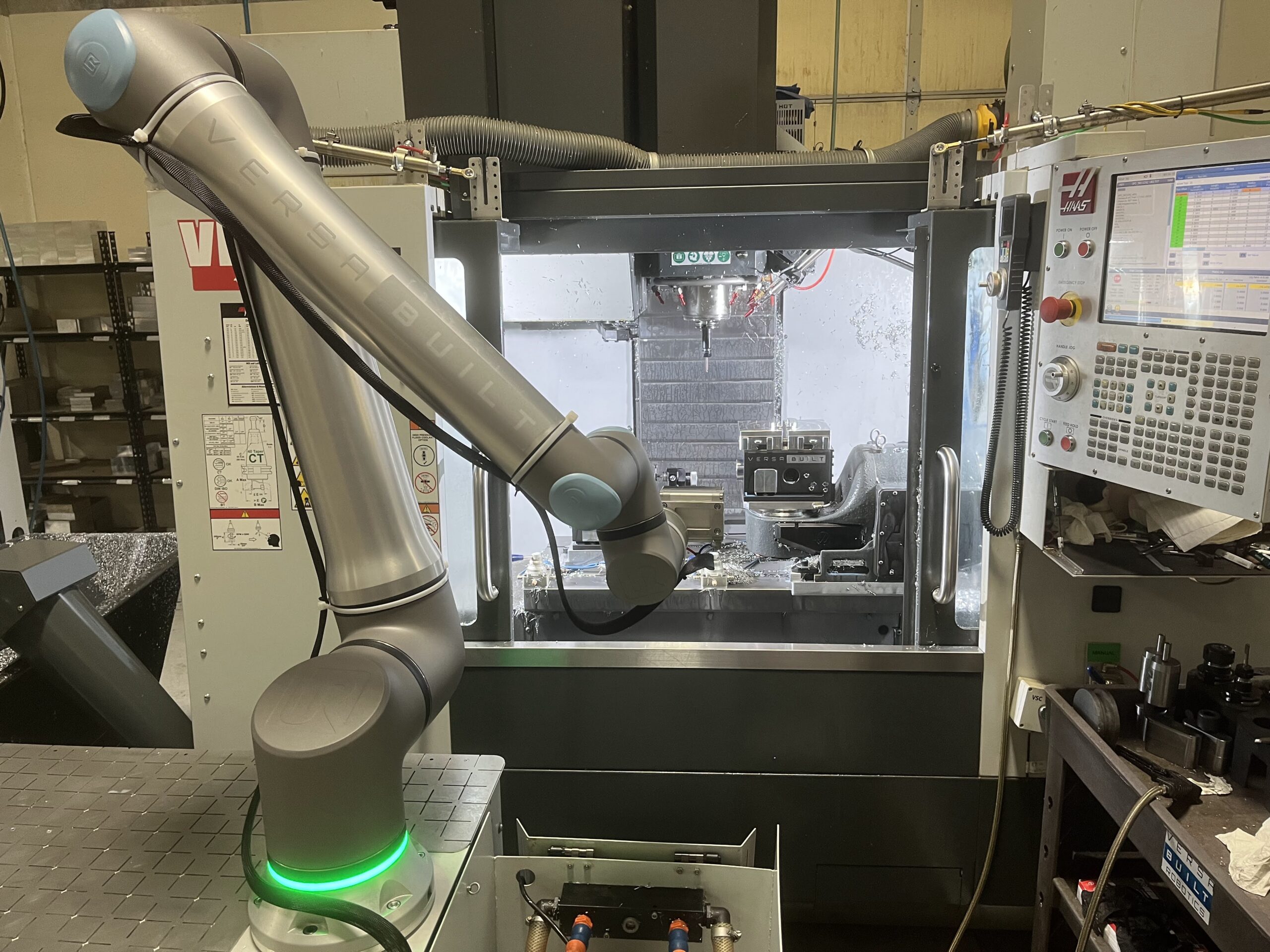

UR20 with VF2

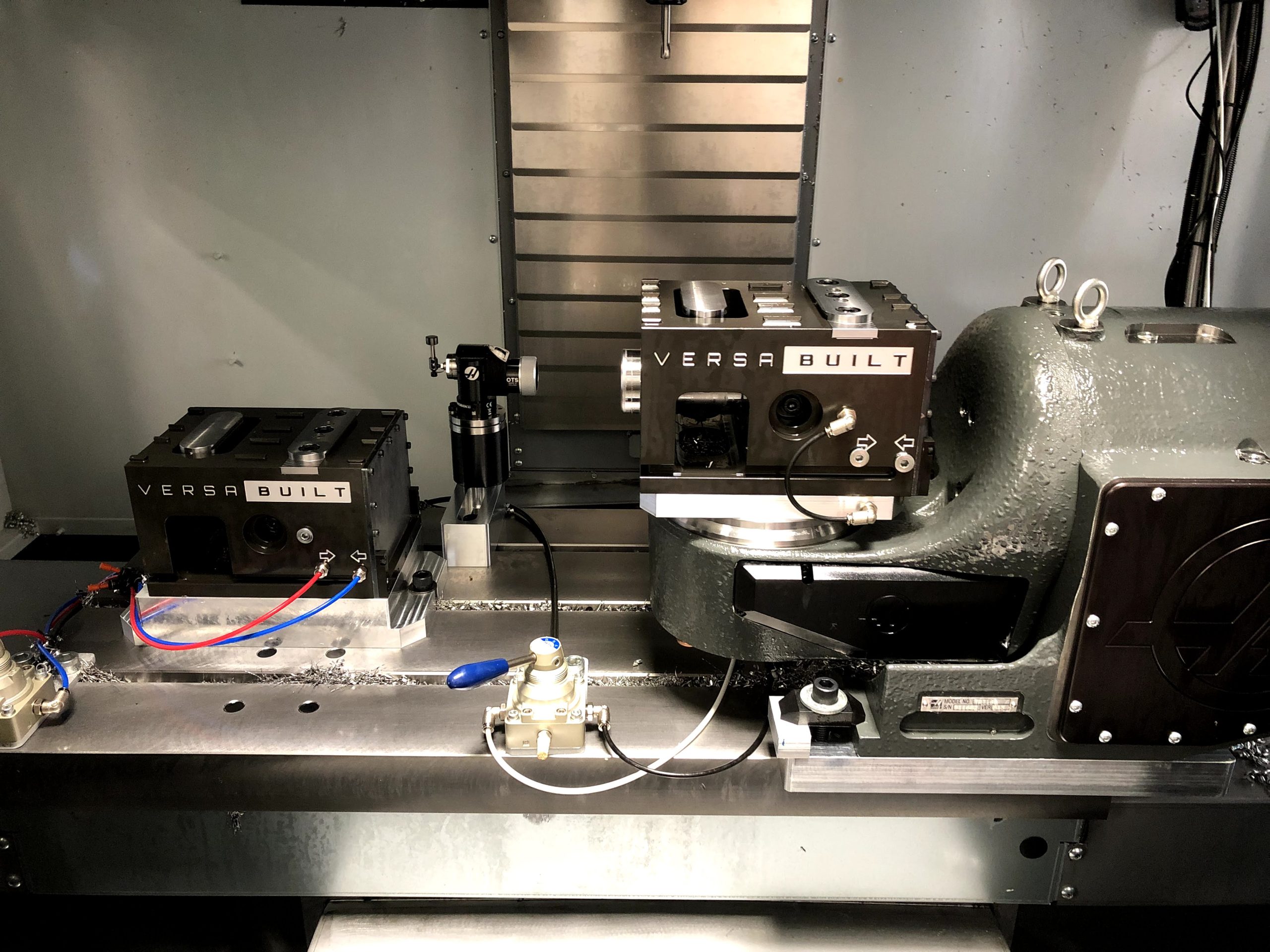

MultiGrip Vises 3 plus 2 configuration

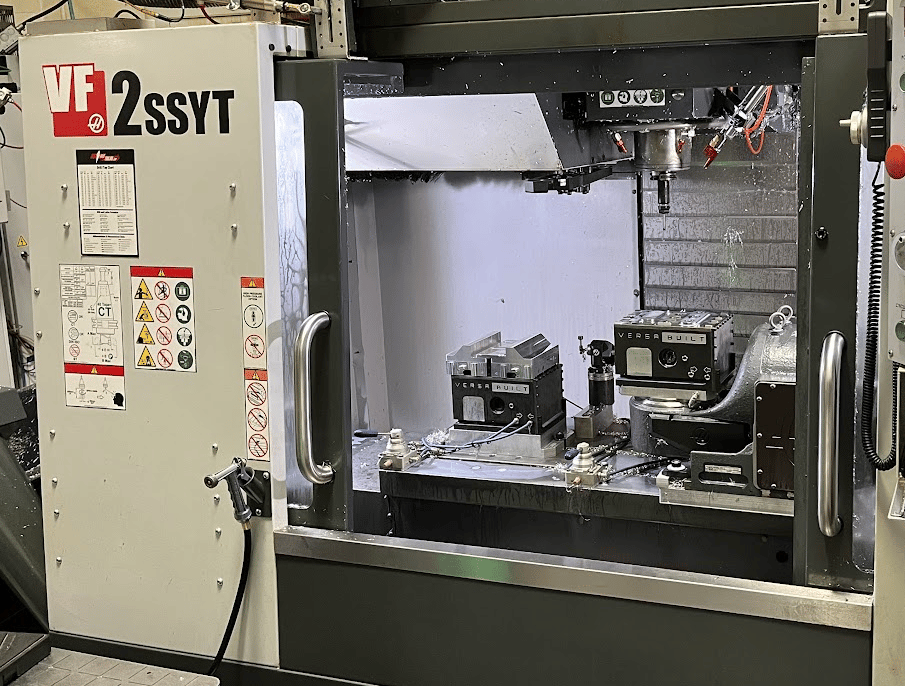

VF2 3-axis +5-Axis TRT-160 Vise Configuration

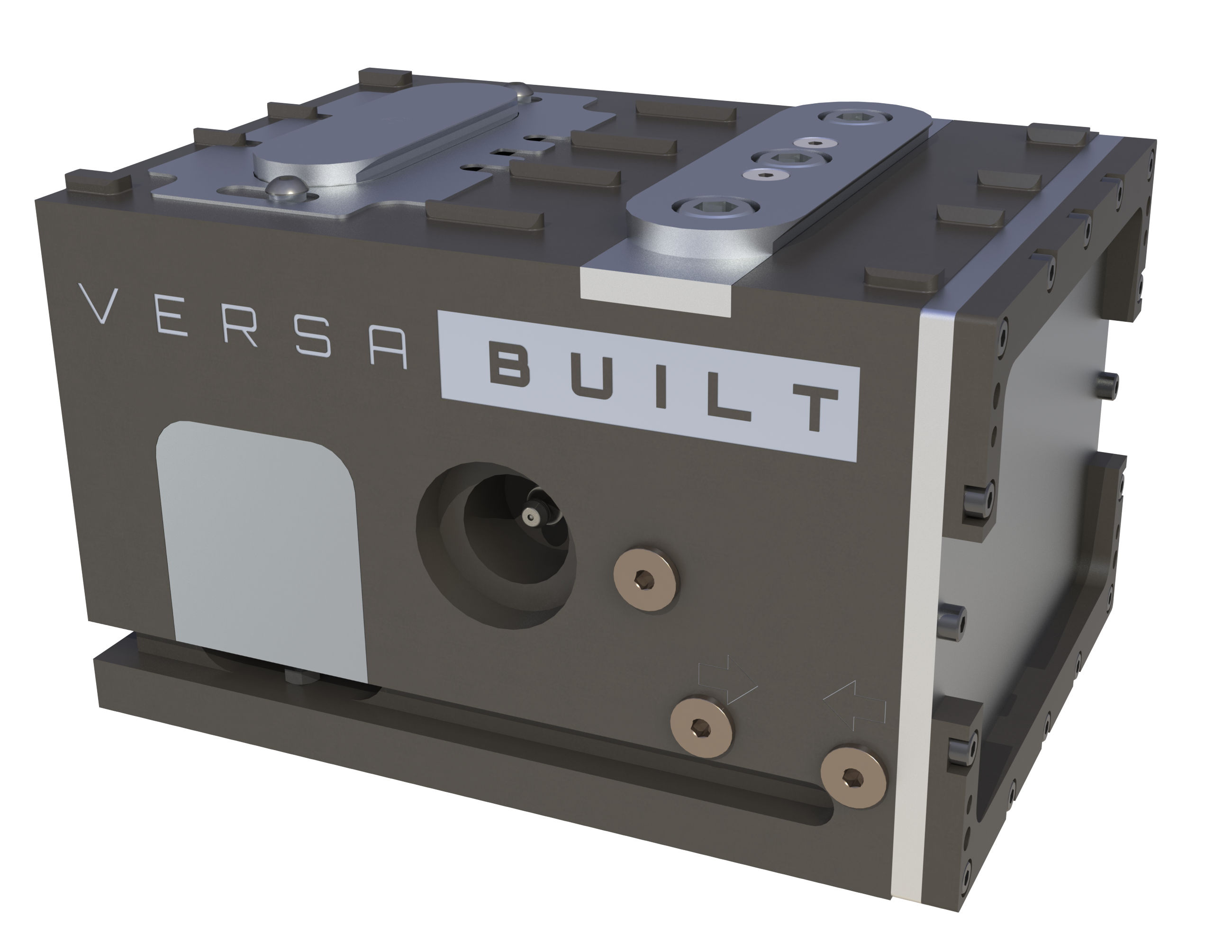

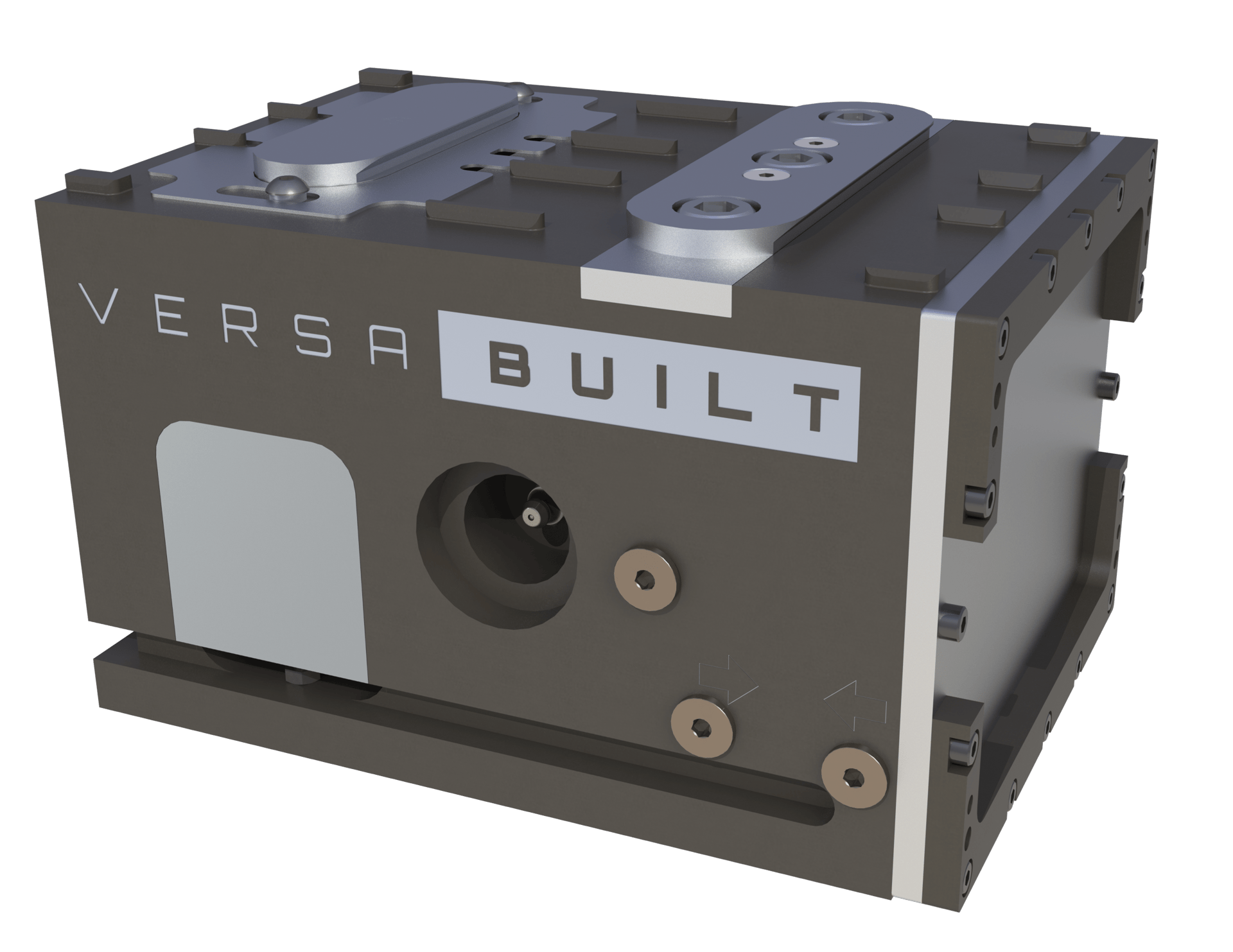

MultiGrip Vise 4000

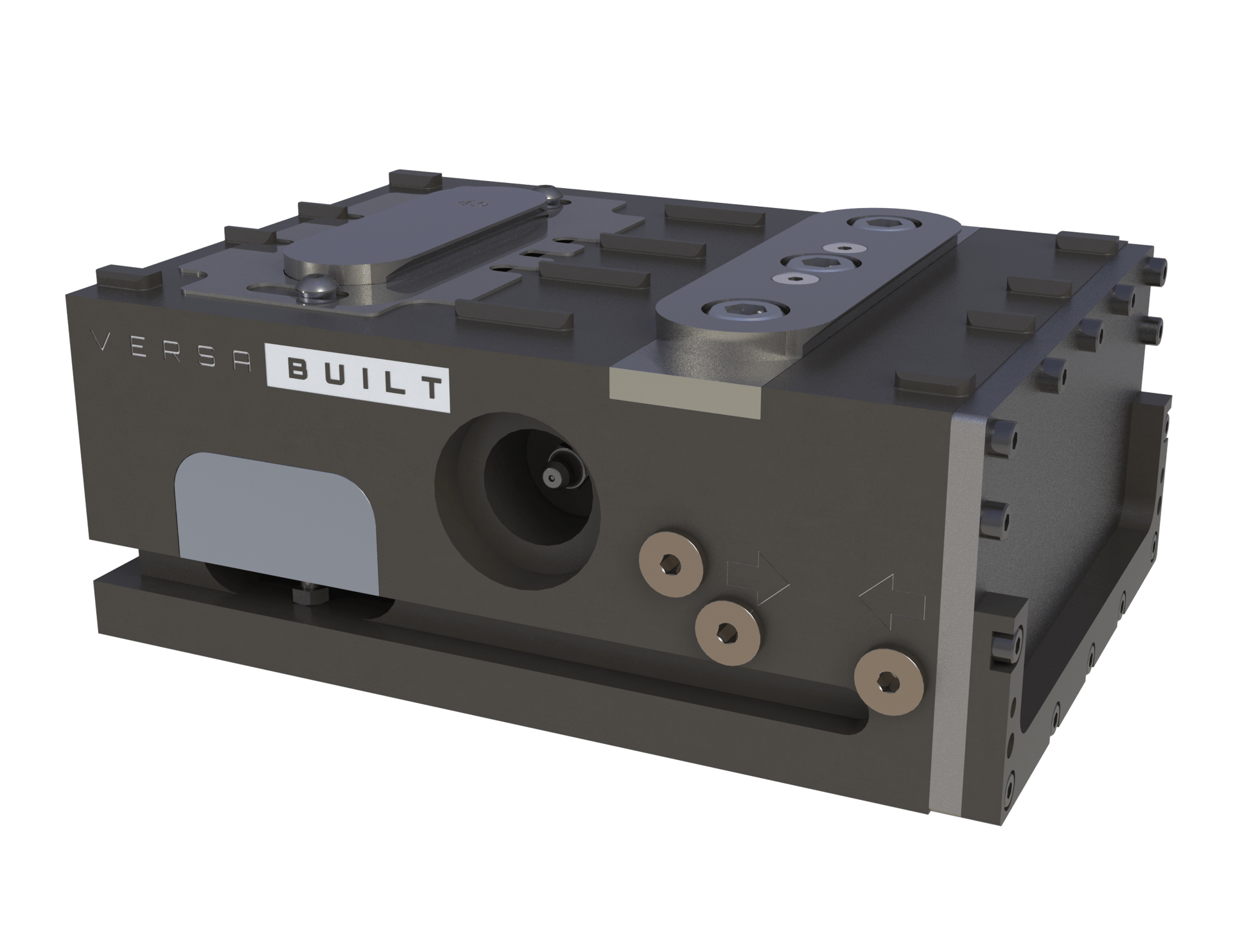

MultiGrip Vise 2000

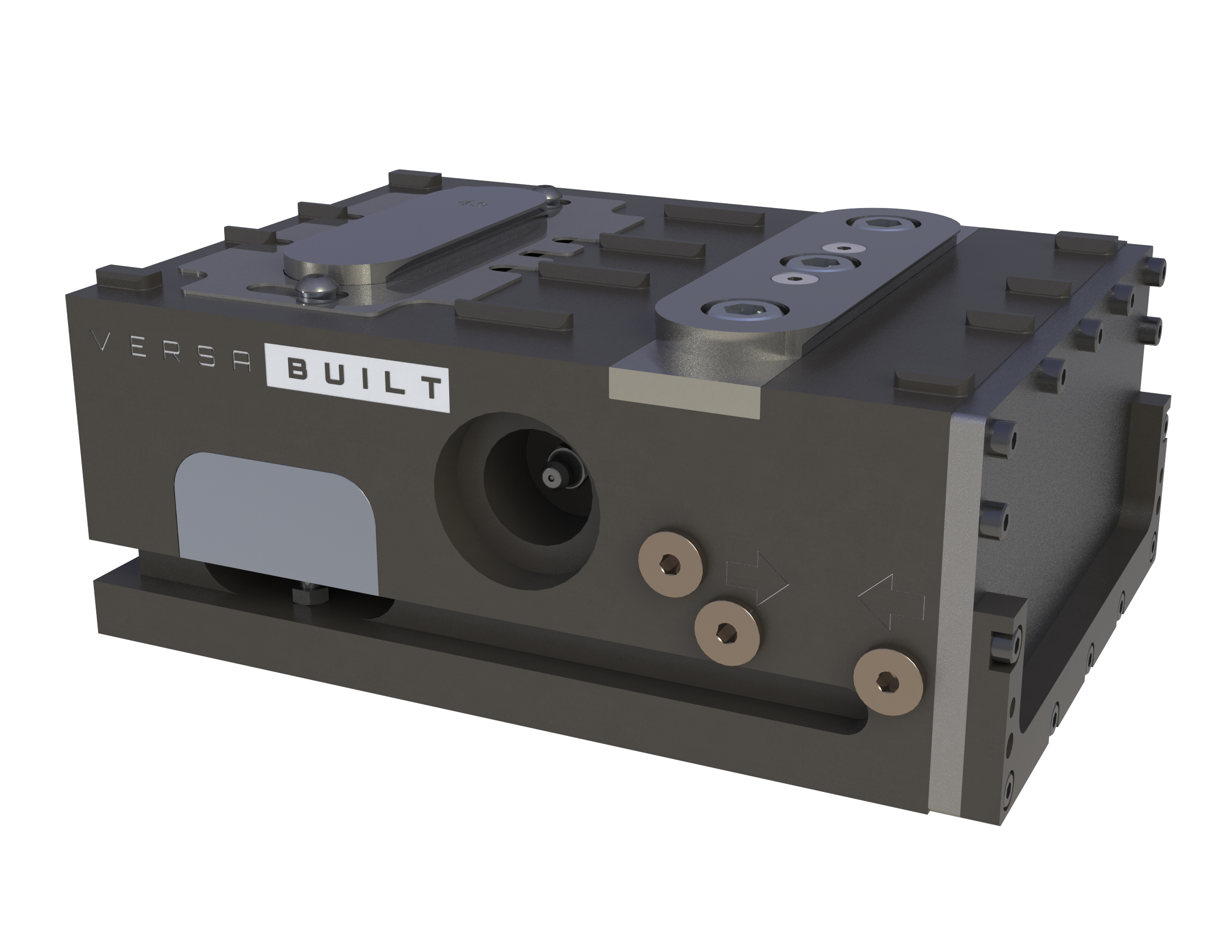

vise rendering - MG 2000 - 001

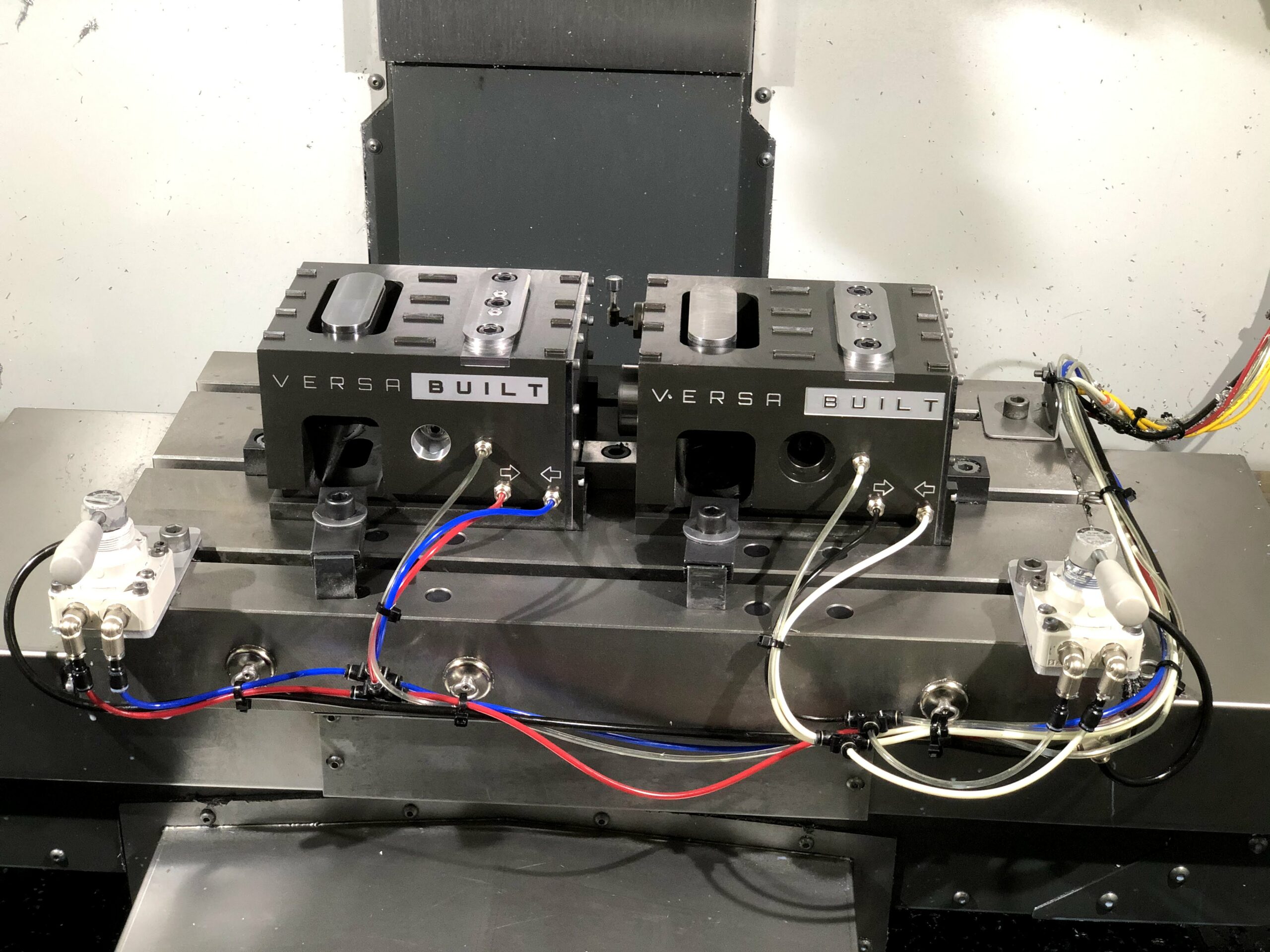

3-axis example
Purchasing Options

Refer to the Price Sheet *link at top of page* for latest pricing & CAD downloads are available on the Resources page.

Purchasing Options

  • MultiGrip Vise 4000 – P/N 5010289
  • MultiGrip Vise 4000 Steel Top Vise – P/N 5011287
  • MultiGrip Vise 2000 – P/N 5009518
  • MultiGrip Vise 2000 Steel Top Vise – P/N 5011288
  • MultiGrip Vise Solenoid Valve Kit – P/N 5008099
  • MultiGrip Vise Sensor Kit, 2 Vise Setup – P/N 5008432
  • MultiGrip Vise Mounting End Toe-Clamp – P/N 5008777
  • MultiGrip Vise Mounting T-Clamp – P/N 5008970
  • Subplate Package for 2X MultiGrip Vises and Hand Valves – P/N 5010017

MultiGrip Vise Package (Basic) – P/N 5009904

Everything needed to start making parts with a MultiGrip Vise. Easily upgraded to a full automation solution using traditional robot grippers.

  • MultiGrip Vise
  • 2 x 1″ OD SingleGrip Jaw Sets
  • CNC table-mounted hand-valve
  • Pneumatic tubing and fitting

MultiGrip Vise Package (Automation Ready) – P/N 5009905

Everything needed to start making parts with a MultiGrip Vise. Using the MultiGrip Base Jaw + Top Jaw System, your workholding is immediately ready to transition to full automation with VersaBuilt’s Mill Automation System.

  • MultiGrip Vise
  • MultiGrip OD Base Jaw
  • 2 x 1″ OD MultiGrip Top Jaws
  • MultiGrip Universal Top Jaws
  • 4x MultiGrip VersaBites
  • CNC Table mounting hardware
  • Table-mounted hand-valve
  • Pneumatic tubing and fittings

Automation Ready 2X MultiGrip Vise Package – P/N 5011945

Everything needed to start making parts with 2 MultiGrip Vises. Using the MultiGrip Base Jaw + Top Jaw System, your workholding is immediately ready to transition to full automation with VersaBuilt’s Mill Automation System.

  • 2X MultiGrip Vise
  • 2X MultiGrip OD Base Jaws
  • 2 x 1.5″ OD MultiGrip Top Jaws
  • MultiGrip Universal Top Jaws
  • 4x MultiGrip VersaBites
  • CNC Table mounting hardware
  • Dual Table-mounted hand-valve
  • Pneumatic tubing and fittings
FEATURES & SPECS

Features

* MultiGrip 4000 clamping force is nominally equivalent to Schunk KSP160-LH and OMIL CFP-160

** Clamping force is the arithmetic sum of individual forces, per industry norms

  • Manufactured using precision 5-axis CNC machining
  • Jaw repeatability of 0.0005” (robot or hand loaded)
  • MultiGrip 4000 Vise* delivers 3,900** pounds of clamping force at 120 psi
  • MultiGrip 2000 Vise delivers 2,000** pounds of clamping force at 120 psi
  • Minimum clamping pressure of 10 psi
  • MultiGrip quick-change jaw interface
  • Low-cost soft-jaw consumables
  • 2-year warranty
Related Products

Related Products

Example Applications

Coming soon

MultiGrip Vise DatasheetMultiGrip Vise Datasheet
