VersaCart

The VersaCart is a Portable Robot Platform and Material Infeed

The VersaCart is sized to provide a generous infeed area yet is compact enough to fit in even the most crowded CNC spaces. Available in the 1300 size, optimized for 1300mm reach robots, and the 1700 size, for 1700mm robots. The VersaCart is CNC laser cut and formed from powder-coated steel for precision, durability, and long life. The Visual Infeed System allows for fast easy part alignment by the operator for pickup by the robot. The lower shelf provides storage for the robot controller and may also be used to store MultiGrip Jaws. The VersaCart is mounted on a heavy-duty caster for portability and includes leveling feet to secure the VersaCart into position in front of the CNC.

Visual Infeed

The VersaCart Visual Infeed System is a laser-cut stainless steel plate that bolts to the top of the VersaCart. A 2″ by 2″ alignment grid makes it easy for an operator to quickly and accurately align material to be processed by the robot. The grid pattern works well for both rectangular and round shapes. For non-uniform shapes, the Visual Infeed System can be removed in just a few minutes and replaced with custom laser-cut part locators.

Purchasing Options

Select a VersaCart and the infeed, pedestal, and accessory options required for the automation system.

VersaCart 1300

VersaCart 1300 – P/N 5012677CAD
VersaCart 1300 Custom Infeed Ready Kit – P/N 5012185CAD

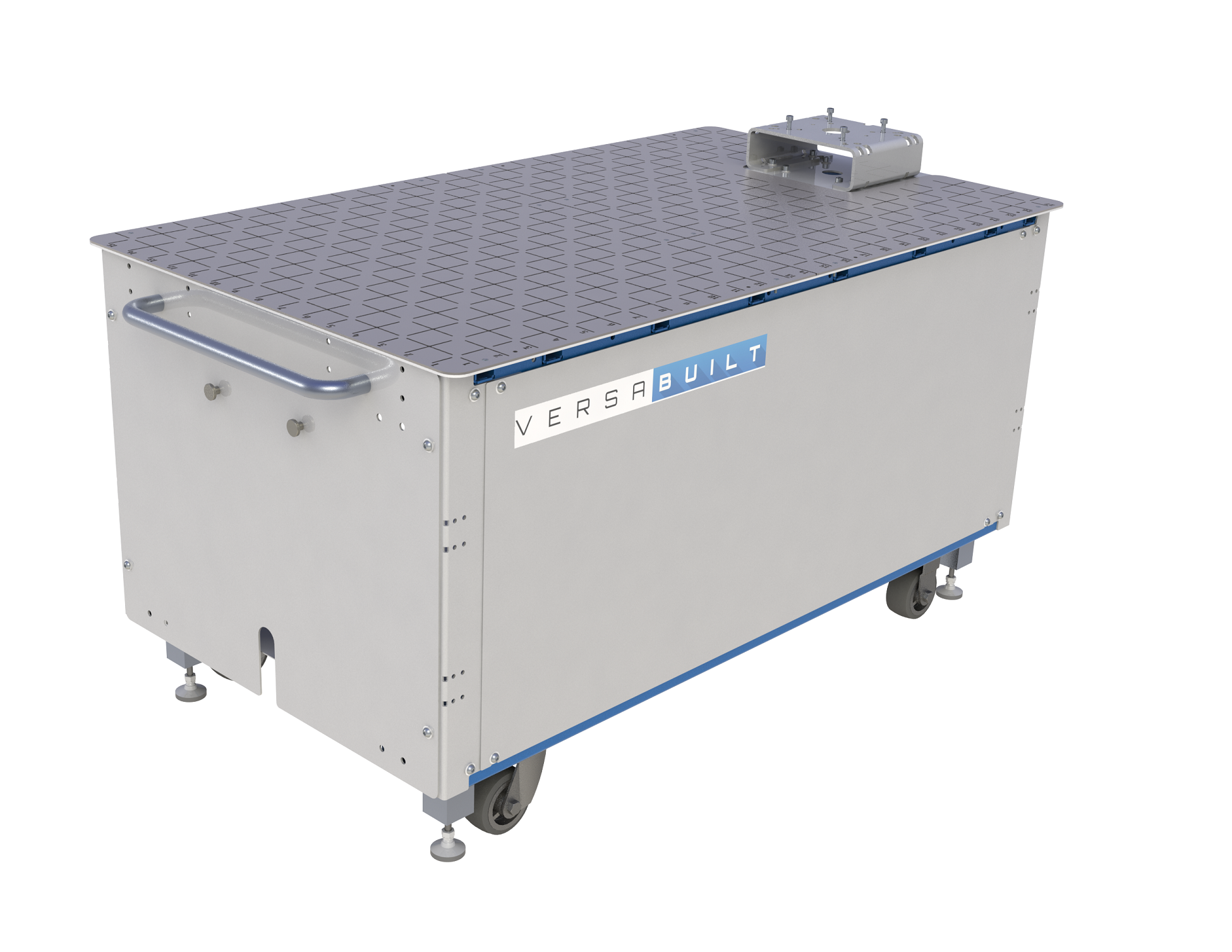

VersaCart 1300 Standard SS Visual Infeed – P/N 5012677CAD
VersaCart 1300 Oversized SS Visual Infeed – P/N 5010264CAD
VersaCart 1300 Shaft Infeed – P/N 5010371CAD

VersaCart 1700

VersaCart 1700 – P/N 5013108CAD
VersaCart 1700 Standard SS Visual Infeed – P/N 5013110CAD
VersaCart 1700 Oversized SS Visual Infeed – P/N 5013158CAD

Pedestals and Accessories

VersaCart UR10e Robot Pedestal – P/N 5012766CAD
VersaCart UR20/30 Robot Pedestal – P/N 5012661CAD

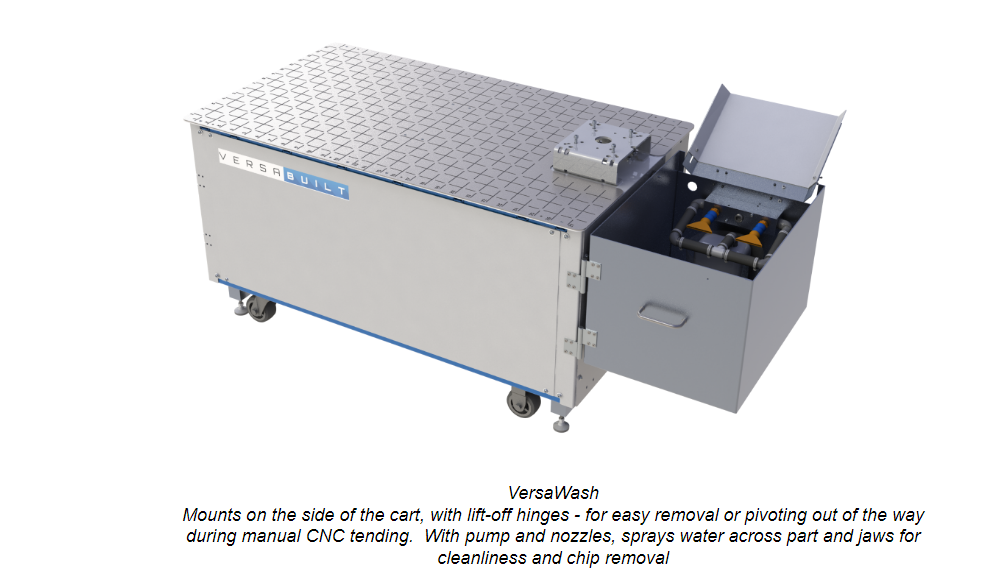

VersaWash for VersaCart 1300 – P/N 5010158CAD

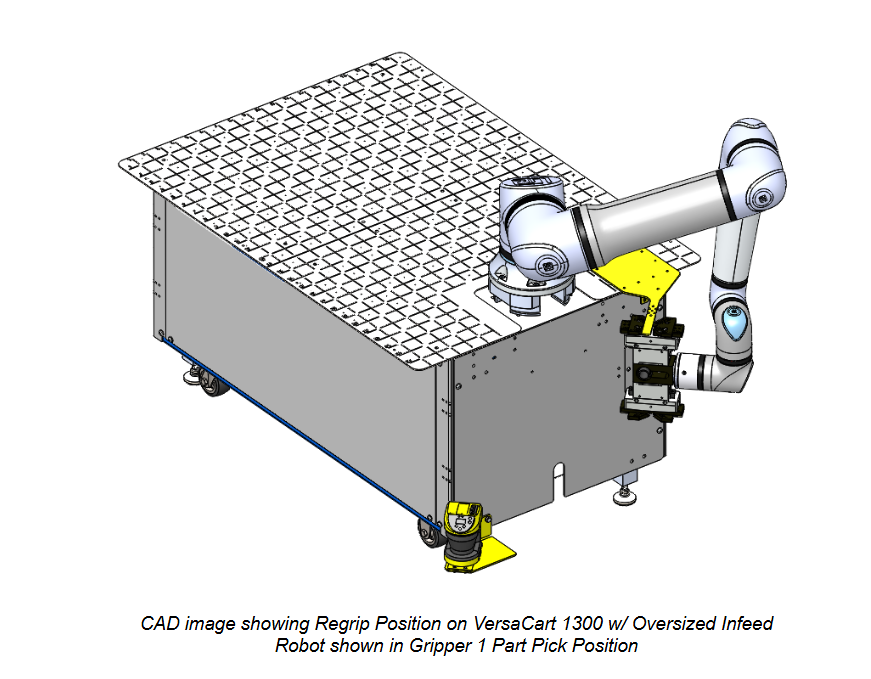

VersaCart Regrip Station – P/N 5011984CAD

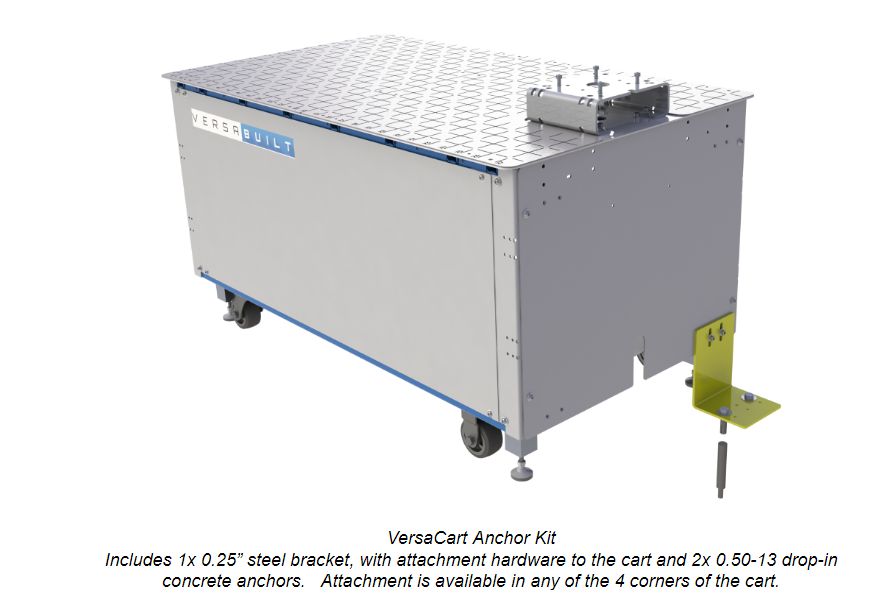

VersaCart Anchor Kit – P/N 5011095CAD

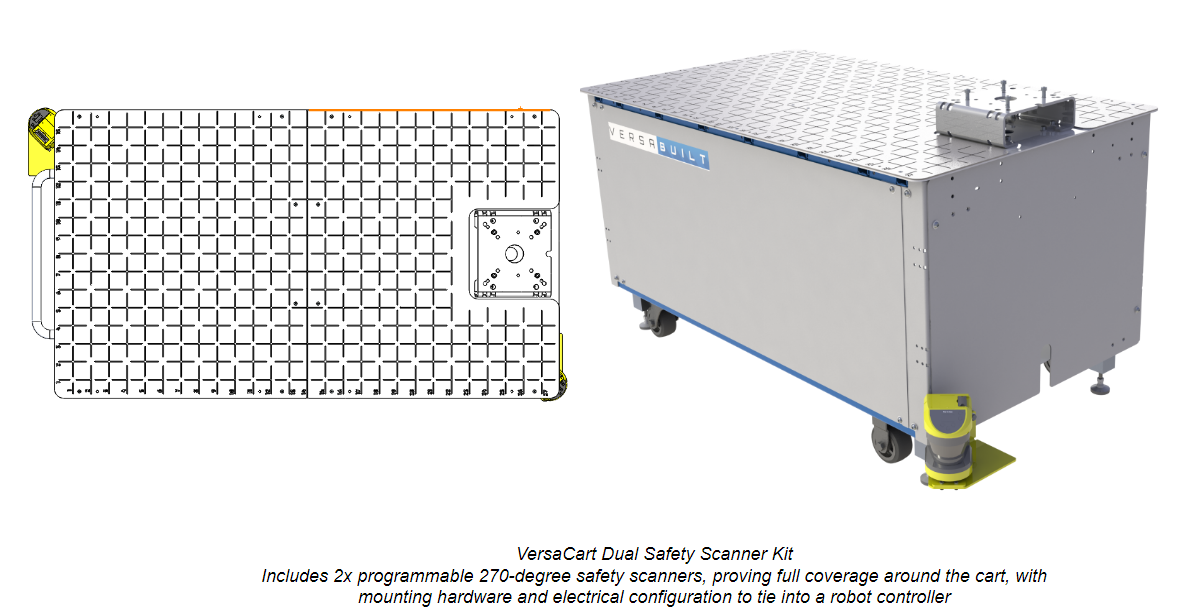

VersaCart Dual Safety Scanner setup for UR robot – P/N 5011597CAD

Features

Optimized for 1300mm reach robots

Almost 1800 square inches of infeed capacity

Options for infeed top: Custom Infeed Ready Kit, Standard SS Visual Infeed System, or Oversized SS Visual Infeed System

Casters allow for portability between CNC machines

Stores and protects robot controller

Secures teach pendant for convenient access

Leveling feet secure VersaCart in place for processing
