MultiGrip Vise

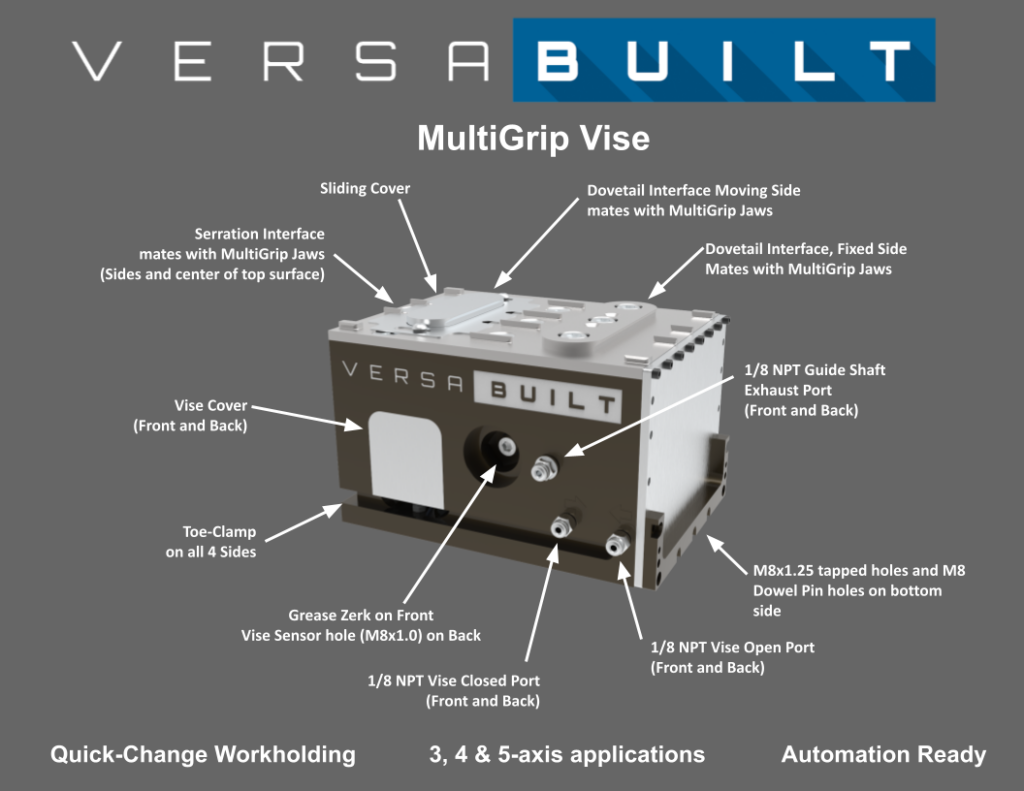

The MultiGrip Vise was designed from the ground up by CNC automation engineers with a total of more than 50 years of combined experience. The MultiGrip Vise is a pneumatic, automation-ready CNC milling vise with a quick-change jaw system. The MultiGrip Vise can be operator-tended or robot tended. Using an automation system incorporating a MultiGrip Gripper provides enhanced capabilities including:
- Simplified Op 1 to Op 2 part transfer
- Easier new part integration to the automation system
- Faster part change-over
- Increased automation reliability
Features
- Manufactured using precision 5-axis CNC
- Jaw repeatability of 0.0005” (robot or hand loaded)
- 4500 pounds of clamping force at 120psi
- Minimum clamping pressure of 10psi
- MultiGrip quick-change jaw interface
- Low-cost soft-jaw consumables
- 2-year warranty
Purchasing Options
MultiGrip Vise 4000 – $1,995 – P/N 5010289
MultiGrip Vise with no other accessories
MultiGrip Vise 2000 – $1,995 – P/N 5009518
MultiGrip Vise with no other accessories
MultiGrip Vise Solenoid Valve Kit – $299 – P/N 5008099
MultiGrip Vise Sensor Kit, 2 Vise Setup – $995 – P/N 5008432
MultiGrip Vise Mounting End Toe-Clamp – $59 – P/N 5008777
MultiGrip Vise Mounting T-Clamp – $59 – P/N 5008970
Subplate Package for 2X MultiGrip Vises and Hand Valves – $995 – P/N 5010017

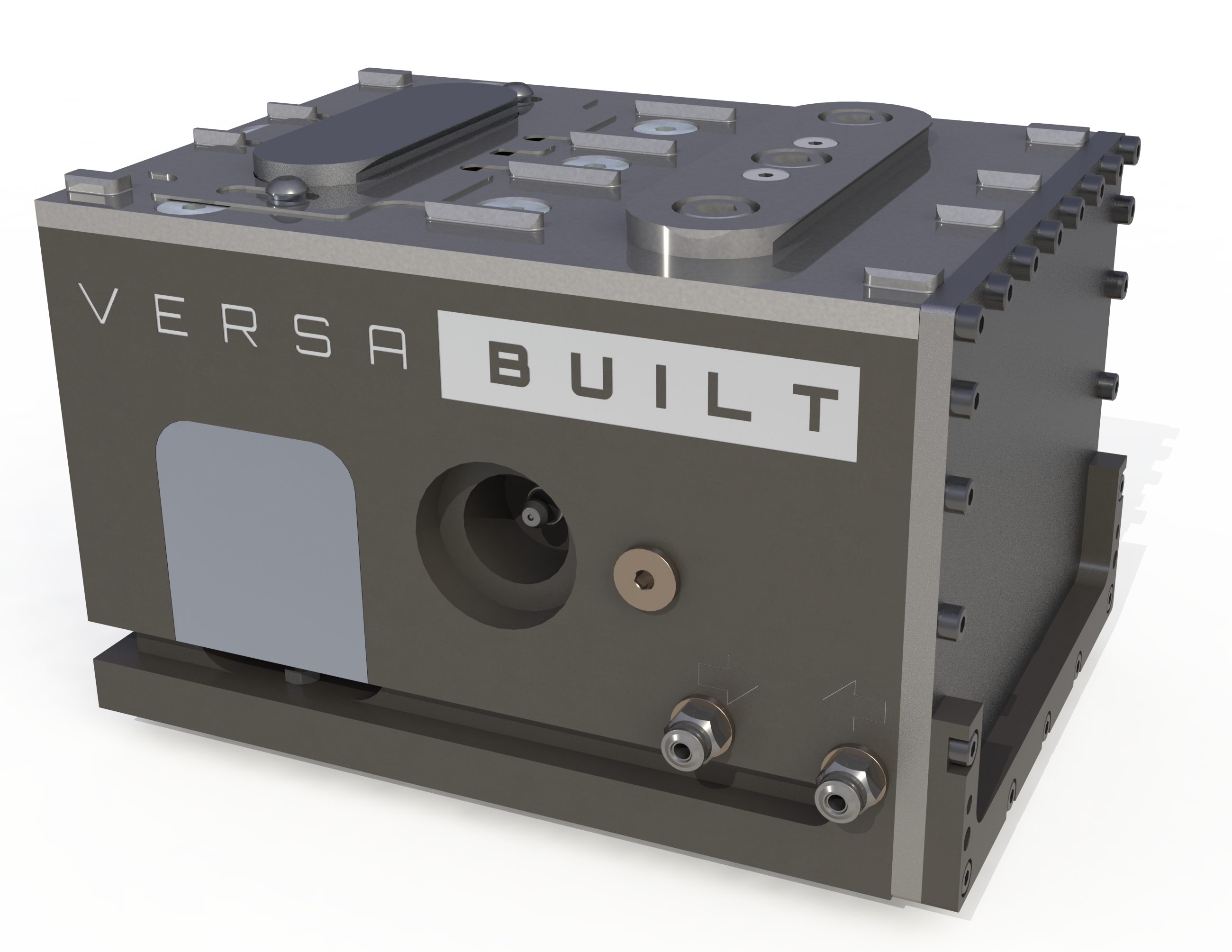

MultiGrip Steel Top Vise – $2,995
MultiGrip Vise with replaceable steel top
MultiGrip Vise Package (Basic) – $2,395 – P/N 5009904
Everything needed to start making parts with a MultiGrip Vise. Easily upgraded to a full automation solution using traditional robot grippers.
- MultiGrip Vise
- 2 x 1″ OD SingleGrip Jaw Sets
- CNC table-mounted hand-valve
- Pneumatic tubing and fittings
- With optional steel top – $3,395
MultiGrip Vise Package (Automation Ready) – $2,995
Everything needed to start making parts with a MultiGrip Vise. Using the MultiGrip Base Jaw + Top Jaw System, your workholding is immediately ready to transition to full automation with VersaBuilt’s Mill Automation System.
- MultiGrip Vise
- MultiGrip OD Base Jaw
- 2 x 1″ OD MultiGrip Top Jaws
- MultiGrip Universal Top Jaws
- 4x MultiGrip VersaBites
- CNC Table mounting hardware
- Table-mounted hand-valve
- Pneumatic tubing and fittings
- With optional steel top – $3,995
Automation Ready 2X MultiGrip Vise Package – $5,795
Everything needed to start making parts with 2 MultiGrip Vises. Using the MultiGrip Base Jaw + Top Jaw System, your workholding is immediately ready to transition to full automation with VersaBuilt’s Mill Automation System.
- 2X MultiGrip Vise
- 2X MultiGrip OD Base Jaws
- 2 x 1.5″ OD MultiGrip Top Jaws
- MultiGrip Universal Top Jaws
- 4x MultiGrip VersaBites
- CNC Table mounting hardware
- Dual Table-mounted hand-valve
- Pneumatic tubing and fittings
- With optional steel tops on 2 Vises- $7,795
