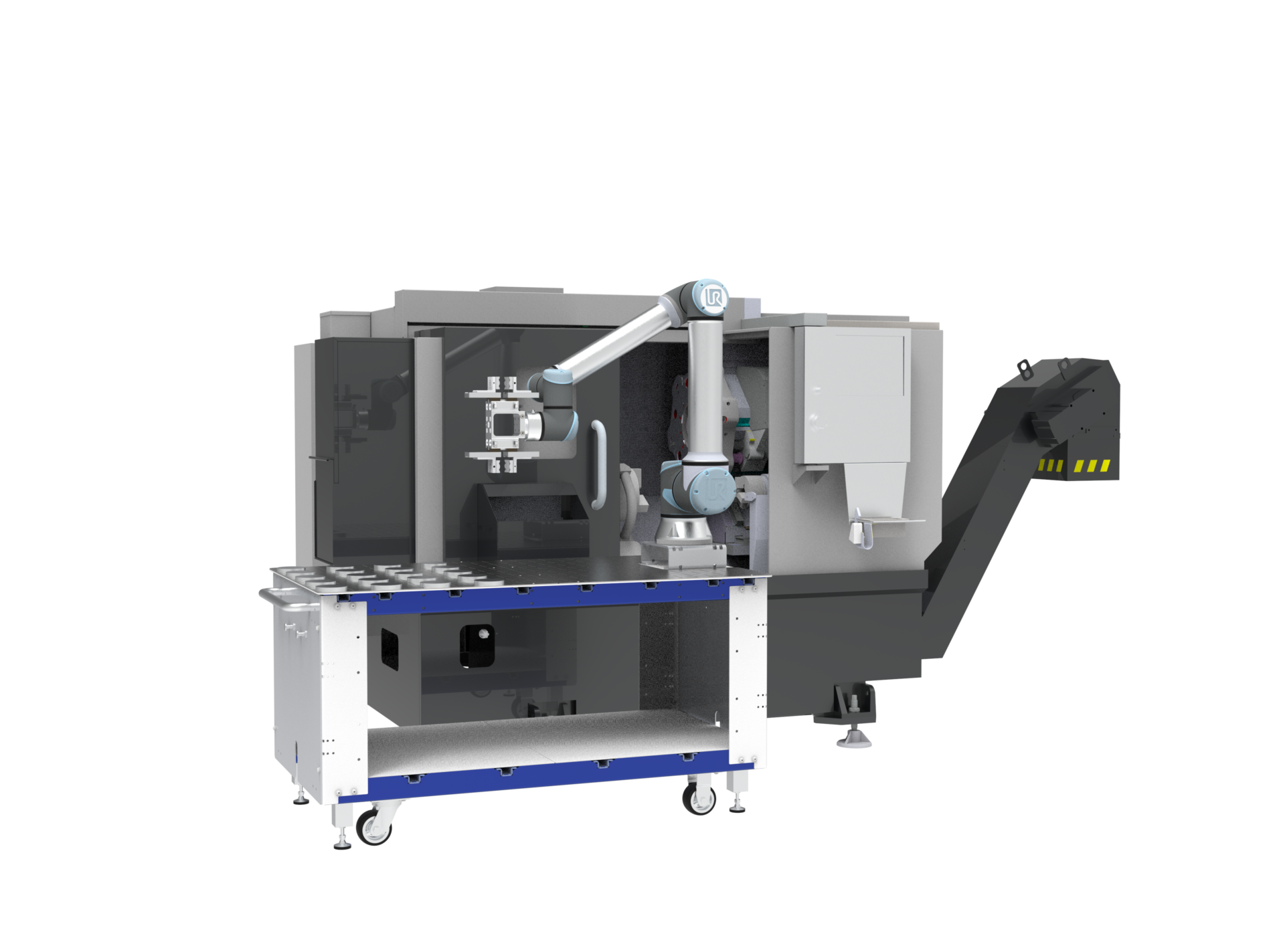

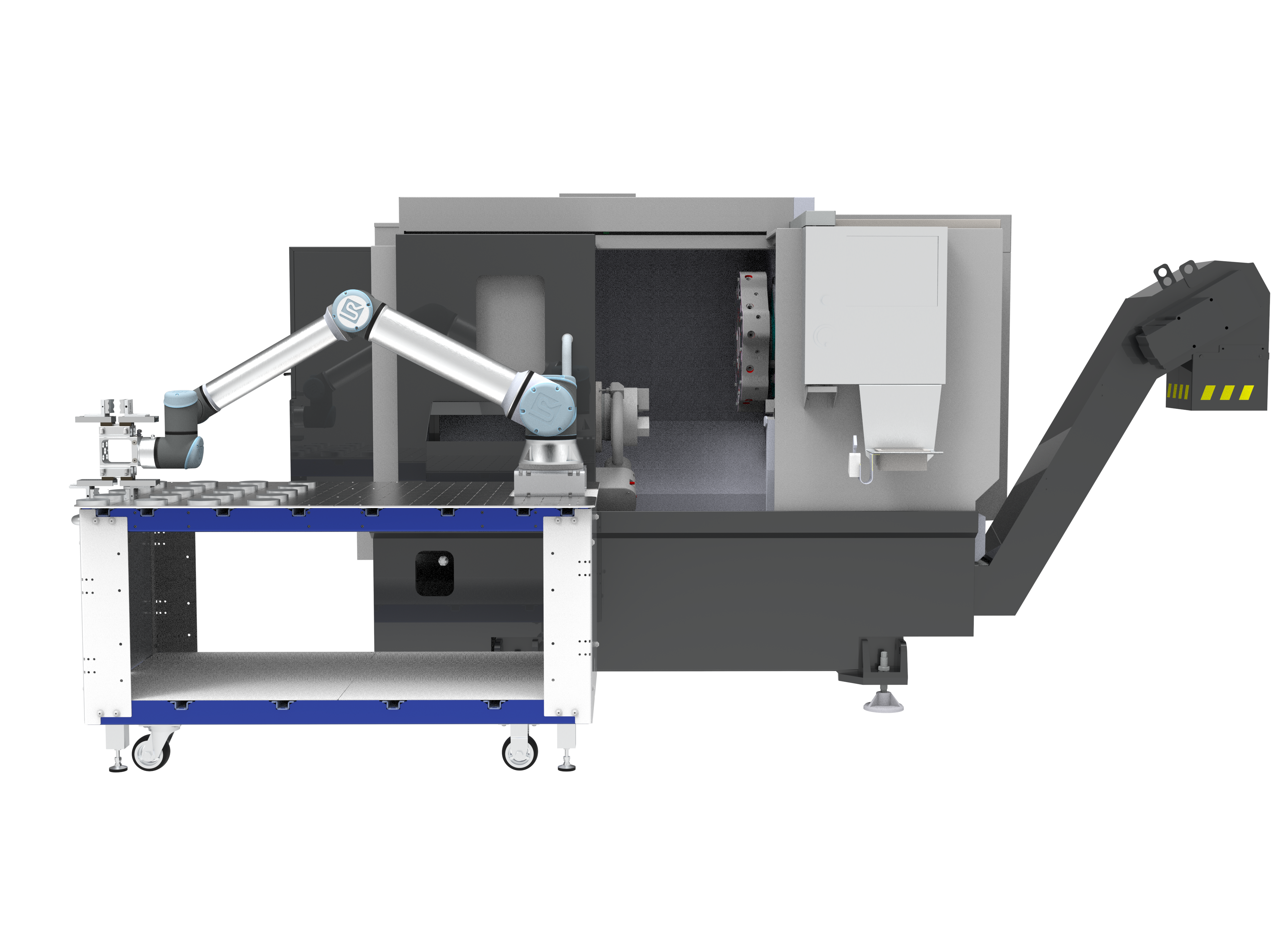

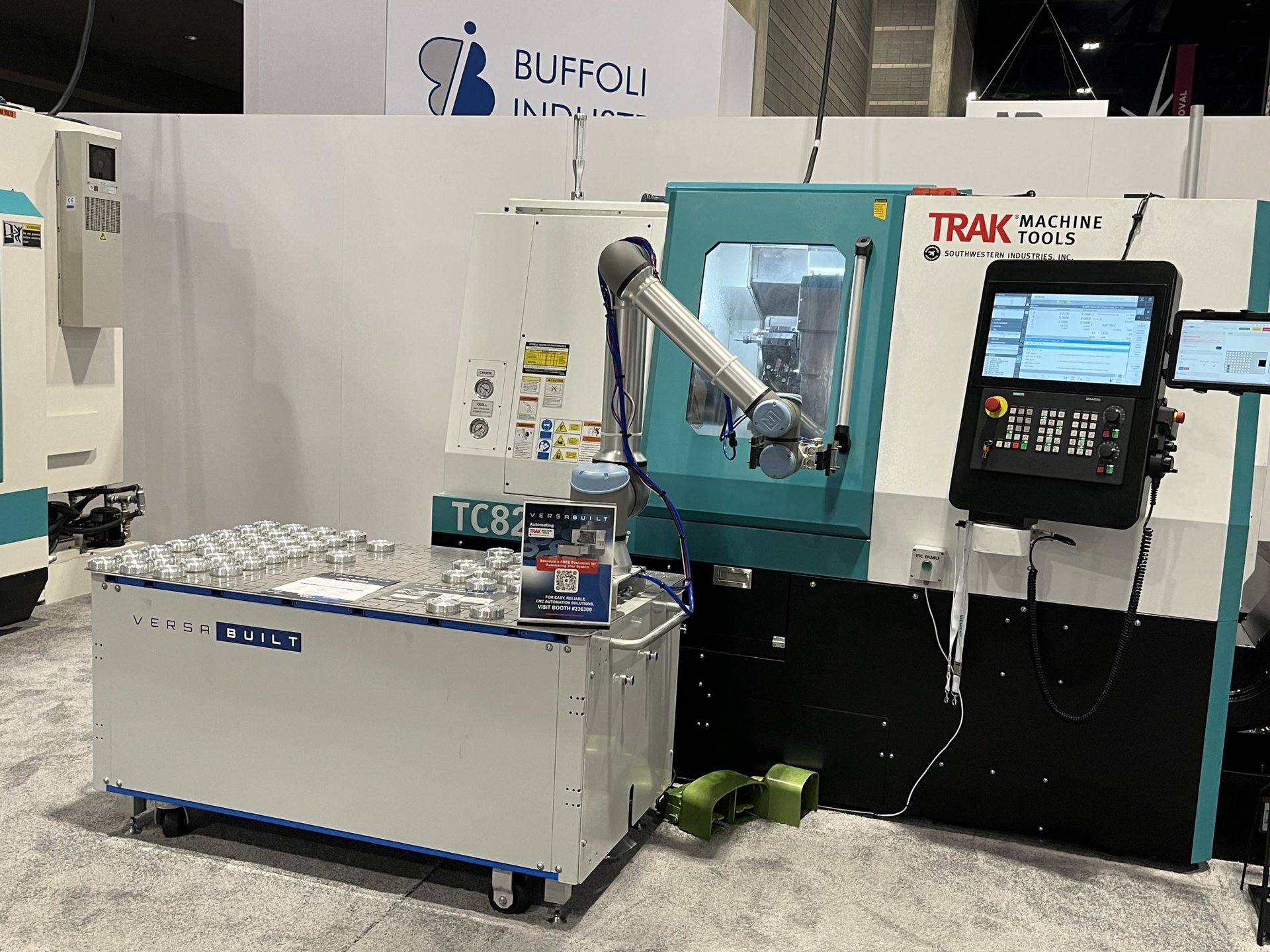

CNC Lathe Automation System
Automate your CNC lathe machine with a standard automation system that requires no robot expertise
How The Lathe Automation System Increases Production
Has a labor shortage affected production output in your shop?
We understand that you are struggling to hire machinists or CNC operators. This is why we help machine shops mitigate operator labor shortages by increasing the productivity of their existing staff.
The CNC Lathe Automation System requires no robot programming. With the included training package, your existing team can use the Lathe Automation System like other tools in your shop; without relying on expensive robot system integrators, saving you time and money.
No Robot Programming Required

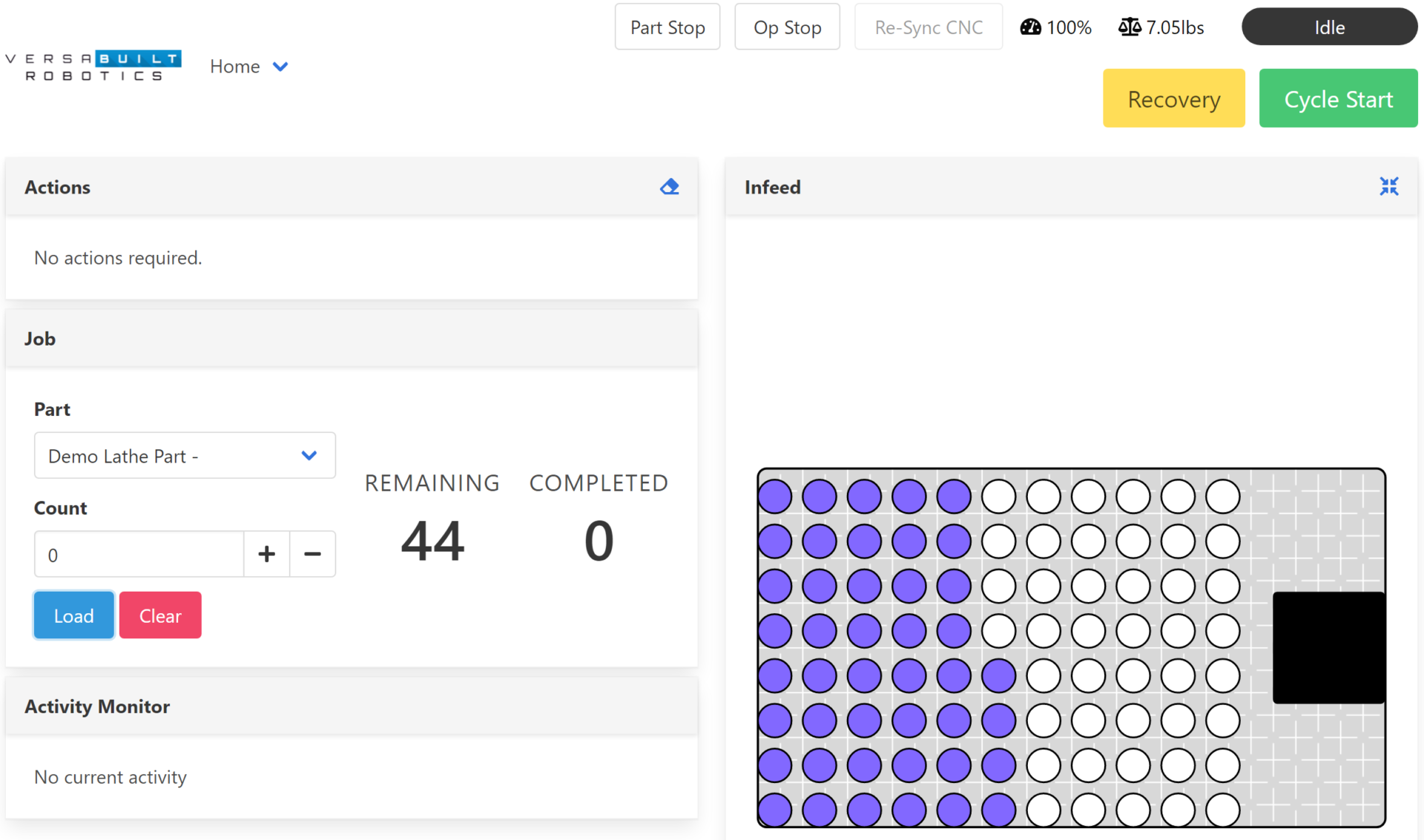

Easy-to-use automation software designed from the ground-up for CNC lathe automation. All robot motion is pre-programmed yet customizable. Simply enter part dimensions and CNC lathe program numbers, and enjoy the benefits of CNC automation. VersaBuilt’s Lathe Automation System is easy to use, installs quickly and has the lowest cost of adding new parts to automation in the industry.
Perfect for High Mix Production
Configuring new parts for automation has never been easier or faster—Perfect for high-mix productions! Users can configure a new part in just a few minutes. Using a web-based form, users define the part configuration parameters (e.g., length, width, height, process type, CNC program number), select saved part configuration, and then runs the part.

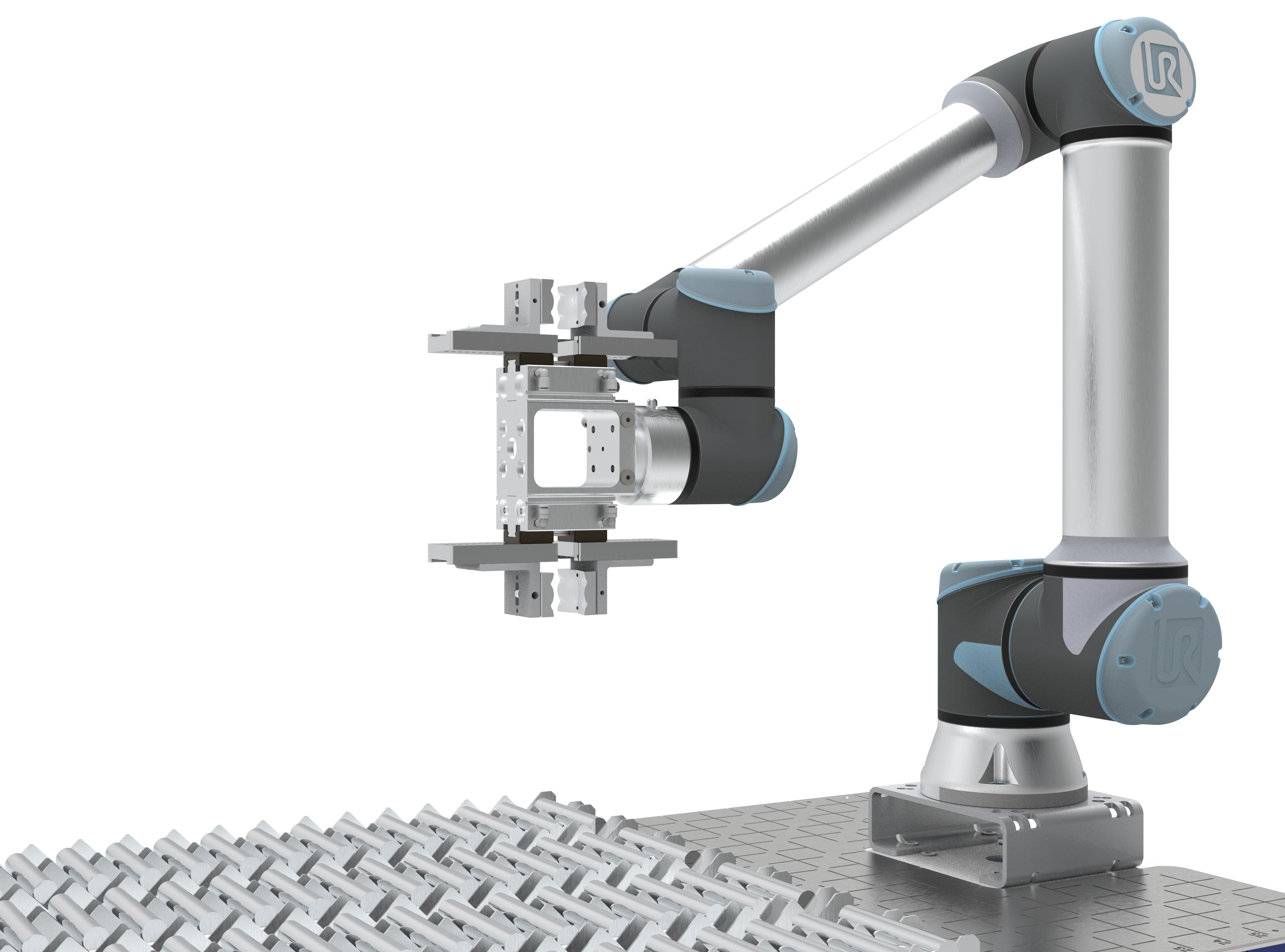

DuoGripper: Maximize Productivity, Process any Part
VersaBuilt’s Double-Headed Gripper increases processing efficiency by allowing the robot to unload a completed part and load the next part in a single motion inside the lathe.
VersaBuilt’s DuoGripper dedicates one gripper to the raw material and one gripper to the finished part. Each gripper can be precisely adapted to optimally grip both the raw material and the finished part, allowing the Lathe Automation System to process virtually any part easily and reliably.
Ready To Produce In 1 Day
The Lathe Automation System can be installed and running parts in just one to two days. This system is a ready-to-go product designed by machinists for machinists to get your automation running faster than any other automation system available.
Quality In-Depth Training And Support
The CNC Lathe Automation System includes in-depth training courses tailored to the operator, machinist, and installer. The classes will take place over a video conference call and will typically last one to two hours each. This training will get your team and new system ready to automate as soon as possible.
VersaBuilt customers typically report a doubling of production output using half the labor.
Included with the Lathe Automation System

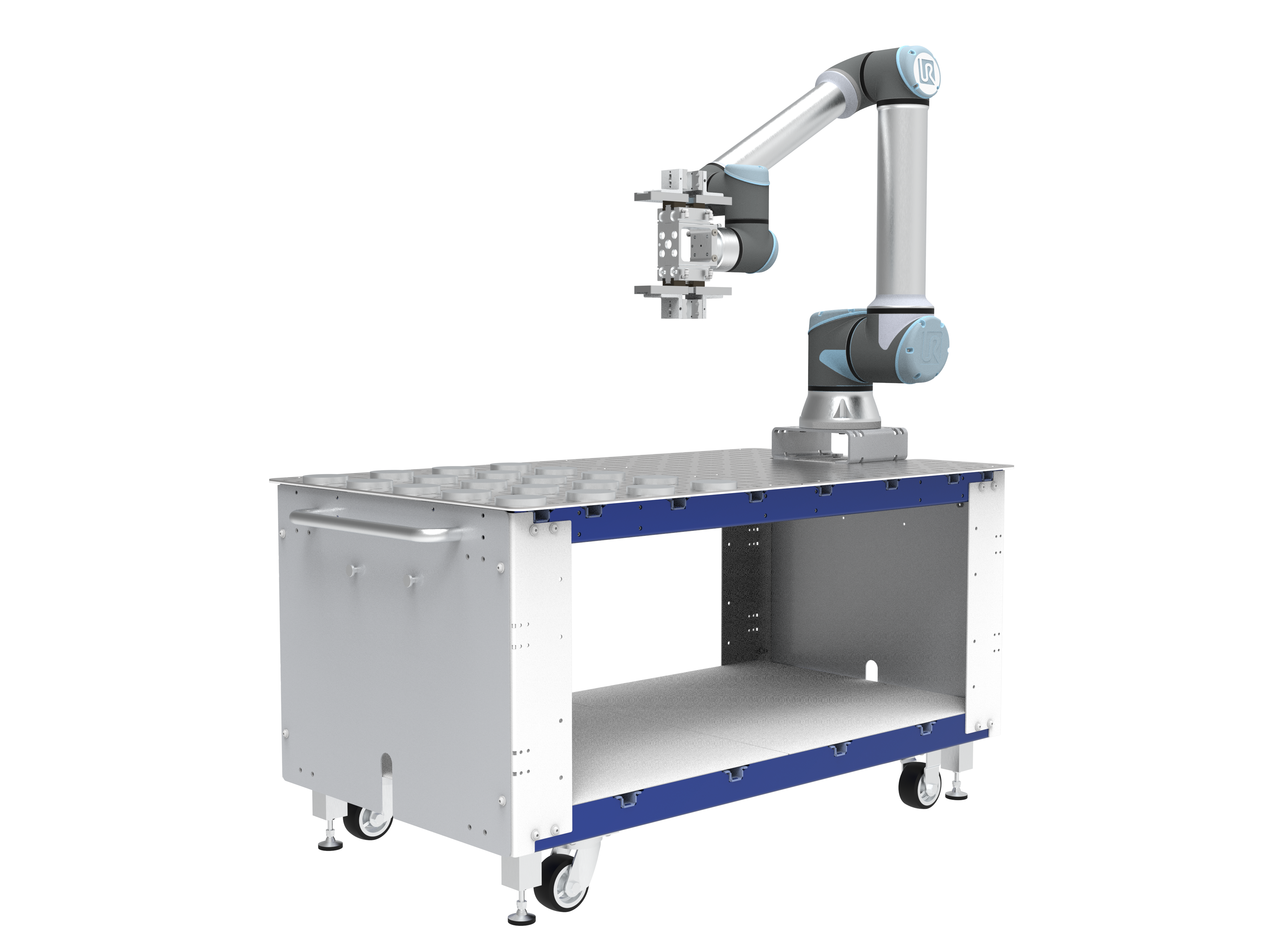

Everything needed to fully automate your lathe process *robot priced separately Click on bold/underlined text for more information- VersaCart
- Visual Infeed (option for bolting on grid plate or locators)
- DuoGrip Gripper w/ wrist blow-off includes Puck fingers for up to 4″ diameter parts**
- Accu-Z Spring Loaded Z-Push Tool
- VersaBuilt System Controller (VSC) w/ CNC communication and Pneumatic control
- Easy-to-use pre-integrated Software
- Included processing for 1 Op, 2 Op, part load only, part unload only, part stacking, bin drop
- On-line connectivity for remote support
- 1-Year warranty*** with new part introduction support

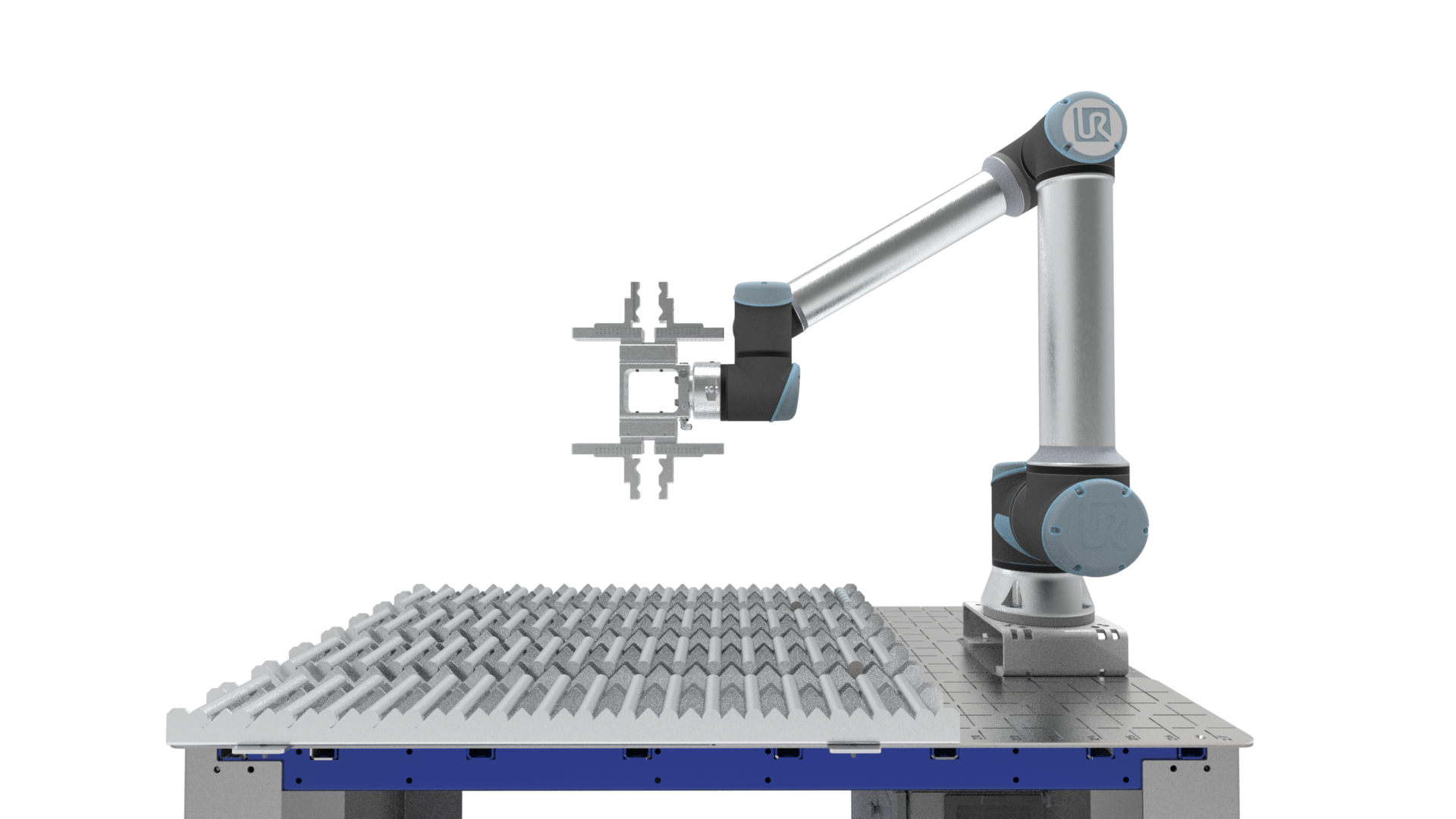

- Optional Shaft Gripper Fingers and Shaft Infeed
Refer to the Price Sheet *link at top of page* for latest pricing
Lathe Automation System
Lathe Automation System for UR10e, UR20, UR30 – P/N 5009873
System Options
Large Puck Fingers (parts up to 8.25″ diameter) – P/N 5011775
Shaft Fingers and Shaft Infeed – P/N 5011159
Oversized Visual Infeed for VersaCart – P/N 5010264
VersaCart Anchor Kit – P/N 5011095
Dual Safety Scanner Package for MAS/LAS – P/N 5011597
CNC Door Openers
VersaDoor Single Door 24″ – P/N 5007494
VersaDoor Single Door 30″ – P/N 5006080
VersaDoor Single Door 40″ – P/N 5006549
VersaDoor Double Door 2x 24″ P/N 5007619
VersaDoor Double Door 2x 30″ P/N 5007621
VersaDoor Double Door 2x 40″ P/N 5010762
Door Sensor Kits
VersaDoor Sensor Kit Single (M8 Connector) – P/N 5007633
VersaDoor Sensor Kit Single (Flying Leads) – P/N 5007644
