MILL AUTOMATION SYSTEM

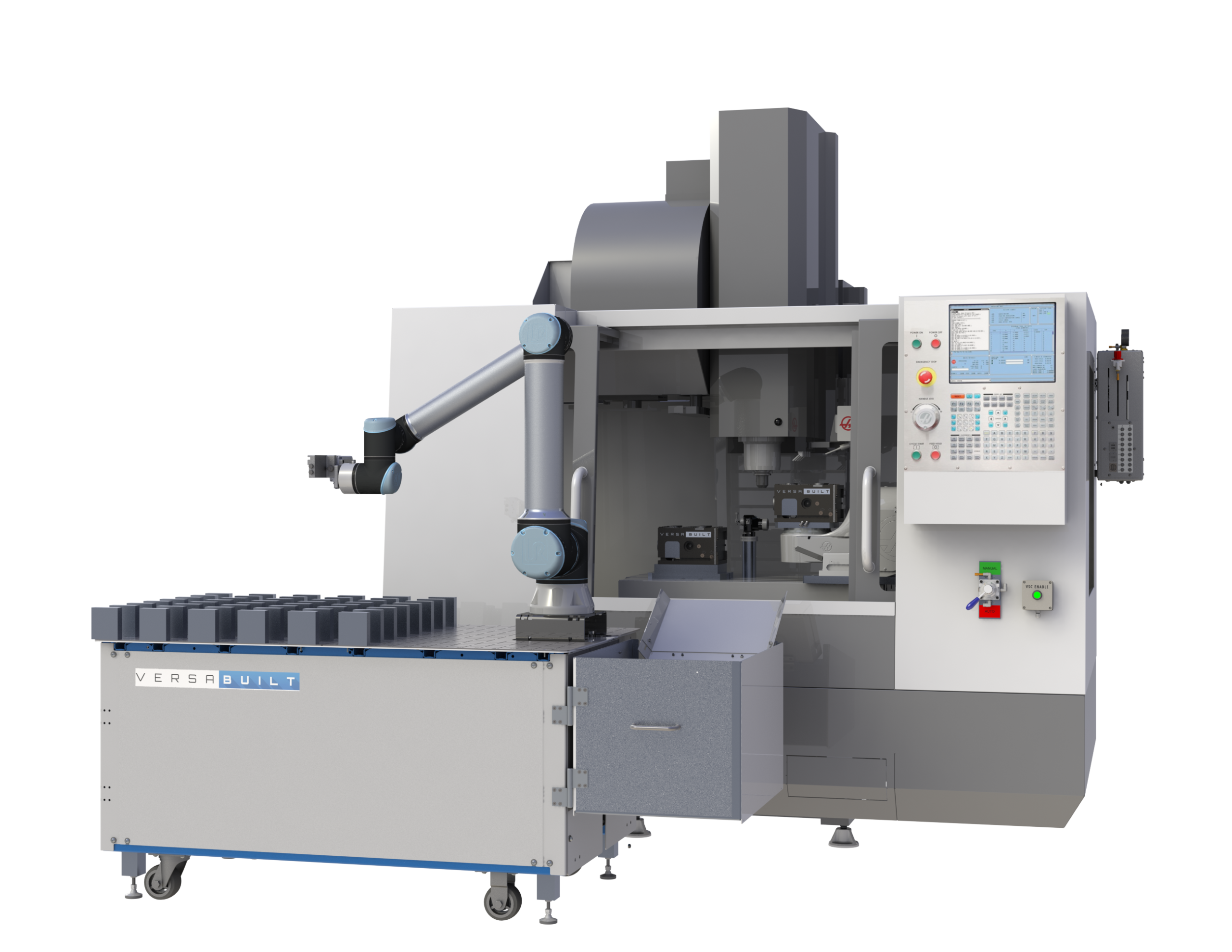

Mill Automation System with MultiGrip
Automate your CNC milling machine with a standard automation system that requires no robot expertise.
Looking for manuals, guides, datasheets, or CAD models? Visit the Resources Page.
READY TO INSTALL
A Standard Automation System, Built for Real Production
VersaBuilt's Mill Automation System with MultiGrip is a powerful, ready-to-install solution created to enhance shop efficiency, alleviate labor shortages, and give shop managers and owners peace of mind.
With a focus on maximizing productivity and reliable processing, the system delivers exceptional value by providing a low-cost way to introduce new parts and a universal solution for part picking, placing, and transferring.
By utilizing VersaBuilt's patented MultiGrip technology, which uses the workholding itself as the robot gripper, the system enables complete automation of multi-operation parts without requiring a regrip station or custom end-of-arm tooling.
MultiGrip sets a new standard for vertical-mill machine tending.
At a Glance
- ✓Patented MultiGrip technology grips the workholding, not the part
- ✓No regrip station or custom end-of-arm tooling required
- ✓Configure a new part in minutes with a simple web-based form
- ✓Installed and running parts in one to two days
HIGH-MIX PRODUCTION
Perfect for High-Mix Production
Configuring new parts for automation has never been easier or faster. The Mill Automation System allows a machinist to configure a new part in just a few minutes using a simple web-based form.
Once the part configuration has been saved, the CNC operator simply selects the part, loads the raw material onto the VersaCart as instructed on the screen, and presses Cycle Start to begin the automation process.
ANY GEOMETRY, ANY OPERATION COUNT
Made for Your Multi-Operation Parts of Any Geometry
If your parts require multiple operations, why settle for a milling automation system that does not natively support them?

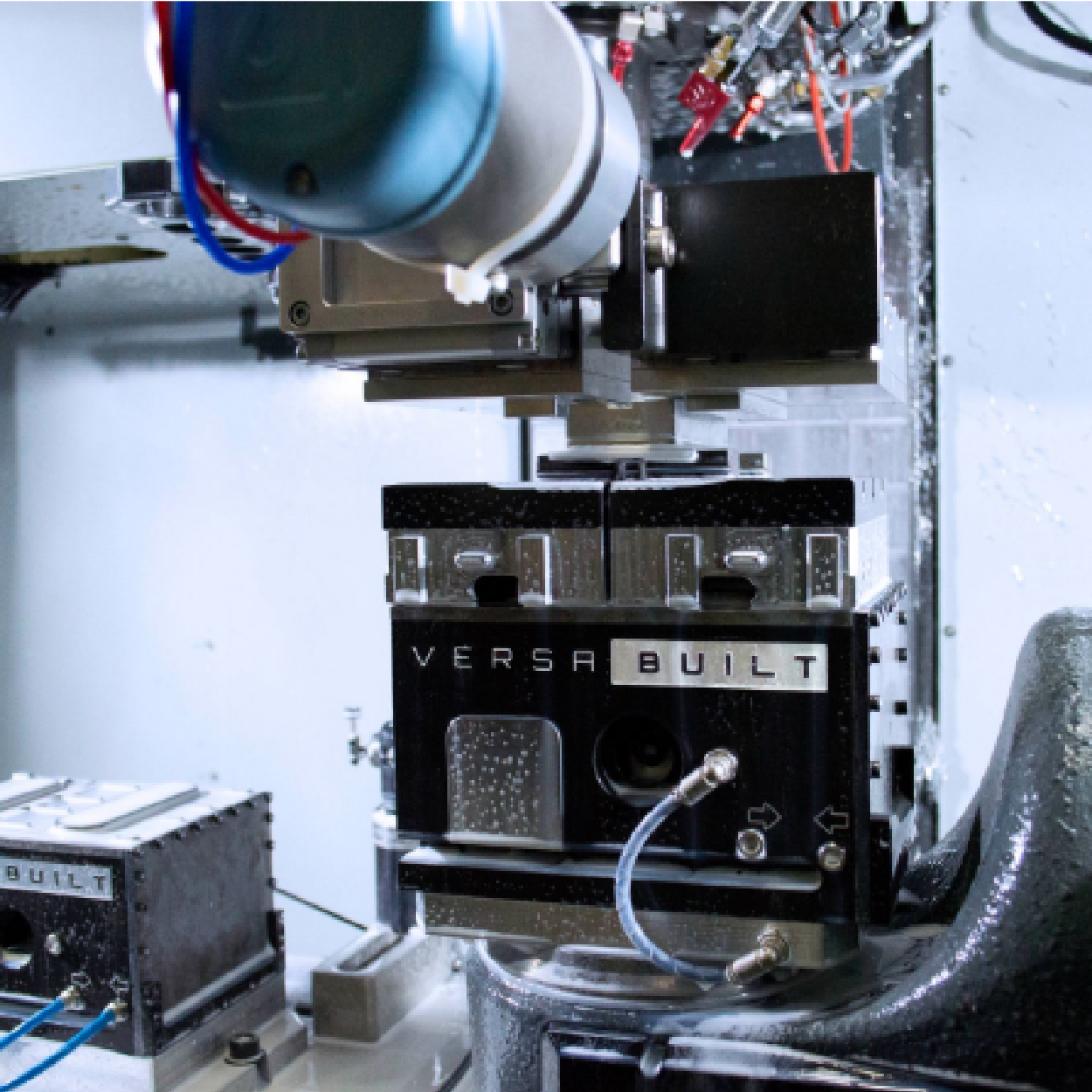

VersaBuilt's patented MultiGrip system handles multi-operation processing seamlessly by gripping the vise jaws rather than the part itself.
This allows a single gripper to handle the part throughout multiple operations as it is machined, eliminating additional manual handling and difficult-to-implement regrip steps.
THE STANDARD SYSTEM
What's Included in the Standard System?
Unlike piecemeal automation setups, the standard Mill Automation System with MultiGrip comes fully equipped with the hardware and software required for complete CNC machine tending.
1

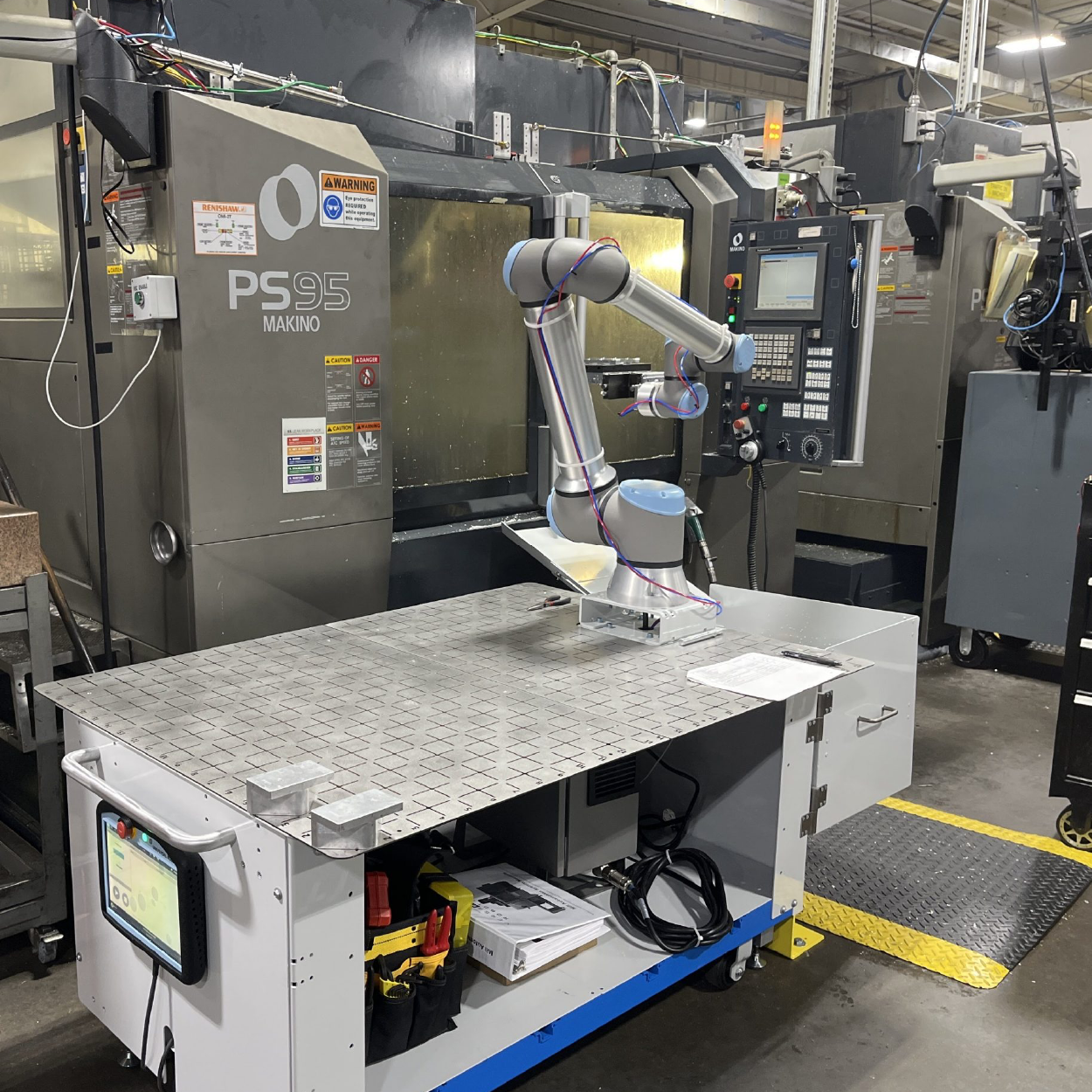

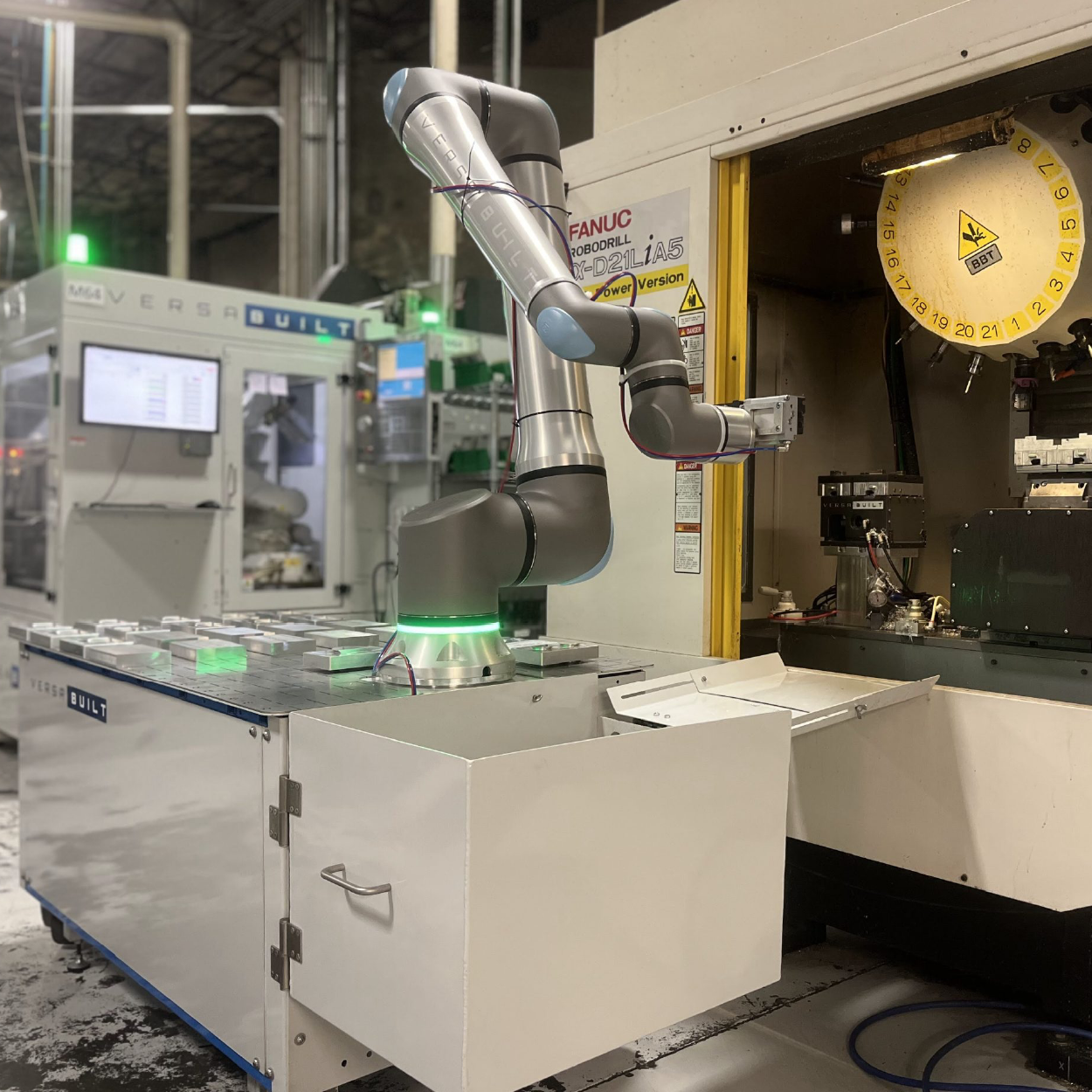

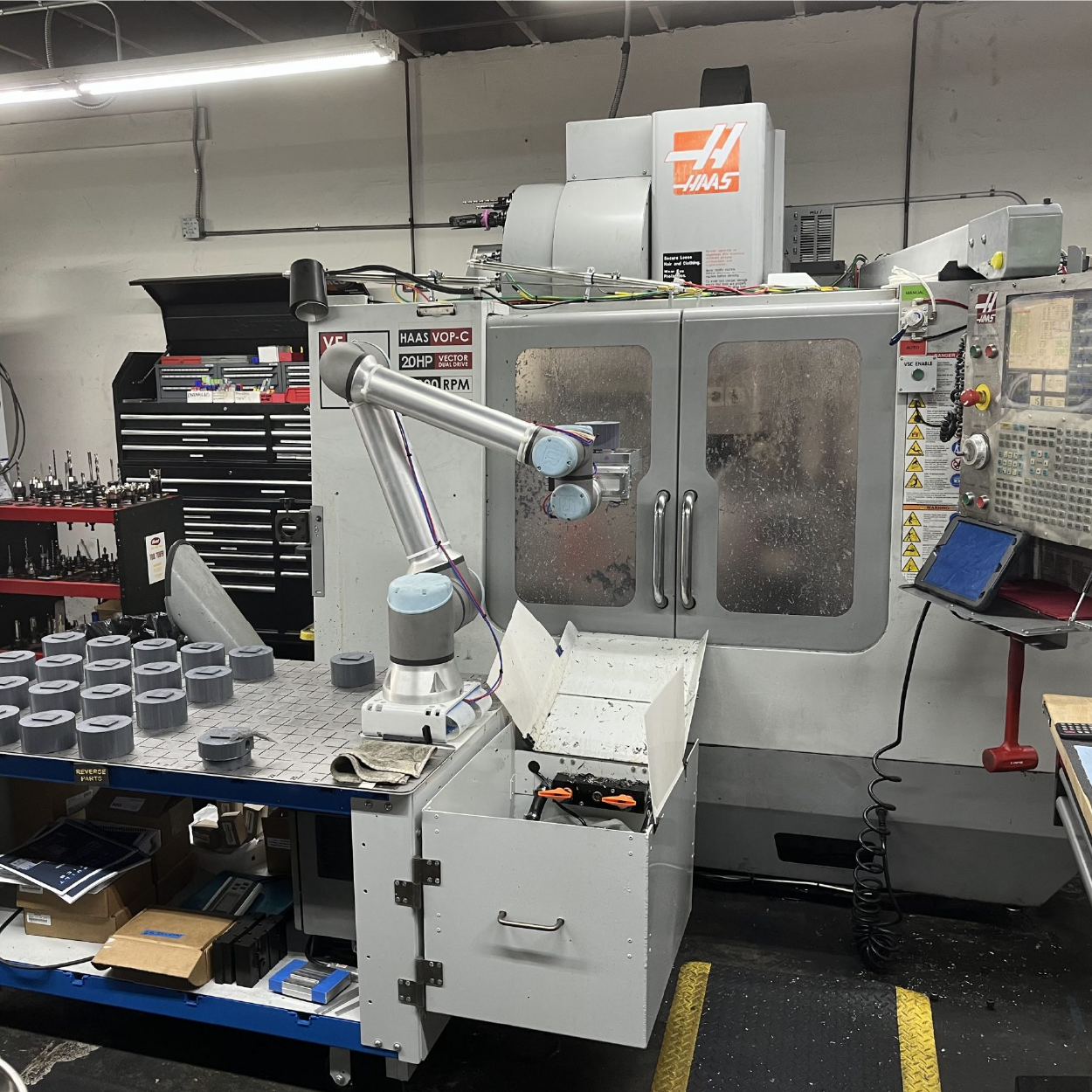

VersaCart
Available in 1300 or 1700 models and equipped with a durable stainless-steel Visual Infeed.
2

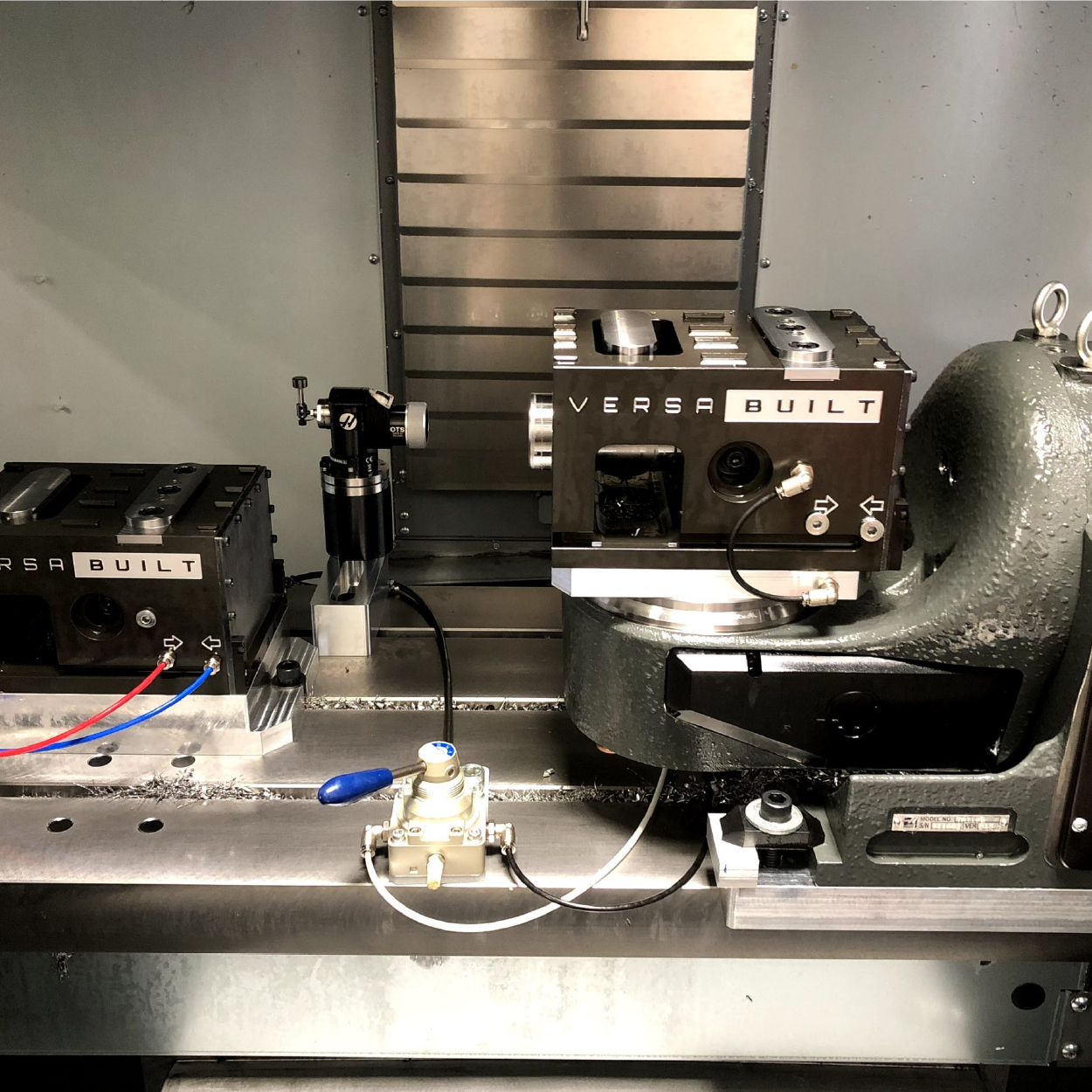

Two MultiGrip Vises
Two MultiGrip 4000 standard vises are included by default.
3
MultiGrip Gripper
A pneumatic, long-travel robotic gripper designed to interface precisely with MultiGrip Jaws.
4
MultiGrip Jaws Starter Kit
Includes jaw blanks for one to two parts, allowing you to begin configuring production parts immediately.
5
VersaWash System
An integrated jaw- and chip-washing station that sprays circulated water to remove chips from the top and bottom of the jaws before, after, and between operations.
6
CNC Push Tools
Includes both Y-Push and Z-Push spring-loaded tools for precise part positioning and seating inside the CNC machine.
7
Vise Sensors
Sensors are included to confirm successful vise clamping.
8
VersaBuilt System Controller (VSC)
The central hub that manages CNC communication, pneumatic control, and the easy-to-use operator interface.
9
Complete Software Suite
Includes unlimited part-program storage, troubleshooting tools, and built-in online connectivity for remote support and software updates.
CUSTOMER EMPOWERMENT
Running Parts in One to Two Days
The Mill Automation System can be installed and running parts in just one to two days. It is a ready-to-go product designed by machinists, for machinists, to get your automation producing faster than a traditional custom-engineered solution.
NO ROBOT PROGRAMMING REQUIRED
Skip the Robot Programming
Forget about the complexities of robot programming. All robot motion is preprogrammed while remaining fully customizable. Simply enter the part dimensions and CNC milling program numbers, then enjoy the benefits of CNC automation with an easy-to-use and highly capable machine-tending system.
1-2 Days
From install to running parts
40%
Of customers self-install their system
100%
Of customers empowered to add new parts on their own
SPECIFICATIONS
System Specifications and Capabilities
Supported Robot Models
Universal Robots
- UR10e
- UR20
- UR30
FANUC CRX
- CRX-10iA/L
- CRX-20iA/L
- CRX-30iA
Application Flexibility
- ✓Multi-operation processing
- ✓Any part geometry
- ✓Vertical and CNC mills
- ✓Compatible with 3-axis, 4-axis, and 5-axis machining
- ✓Direct part transfer from Vise 1 to Vise 2, no regrip station
OPTIONAL ACCESSORIES
Optional Accessories and Upgrades
Tailor the system to your specific manufacturing requirements with these available add-ons.
MultiGrip 2000 Vises
Lower-profile MultiGrip vises for applications requiring a more compact workholding solution.
Vise Options
Available options include MultiGrip Vises with steel tops, two-vise subplates, and Vise Pressure Doublers.
VersaDoor CNC AutoDoor
A simple and reliable pneumatic door opener for unattended and lights-out operation.
Safety Scanners and Anchor Kits
Dual Safety Scanner packages and VersaCart anchor kits designed to improve floor safety and secure the automation system.
Custom Infeed Kits
Oversized Visual Infeeds and custom-locator-ready kits for unique part sizes and geometries.
