Lathe Automation System

Automate your CNC lathe machine with a standard automation system that requires no robot expertise

Lathe Automation System Datasheet & Manuals



Discuss your Needs with an Expert

Automate with Ease

VersaBuilt customers typically report a doubling of production output using half the labor.

FEATURES
Purchasing Options
Related Products
EXAMPLE APPLICATIONS
FEATURES

Included with the Lathe Automation System

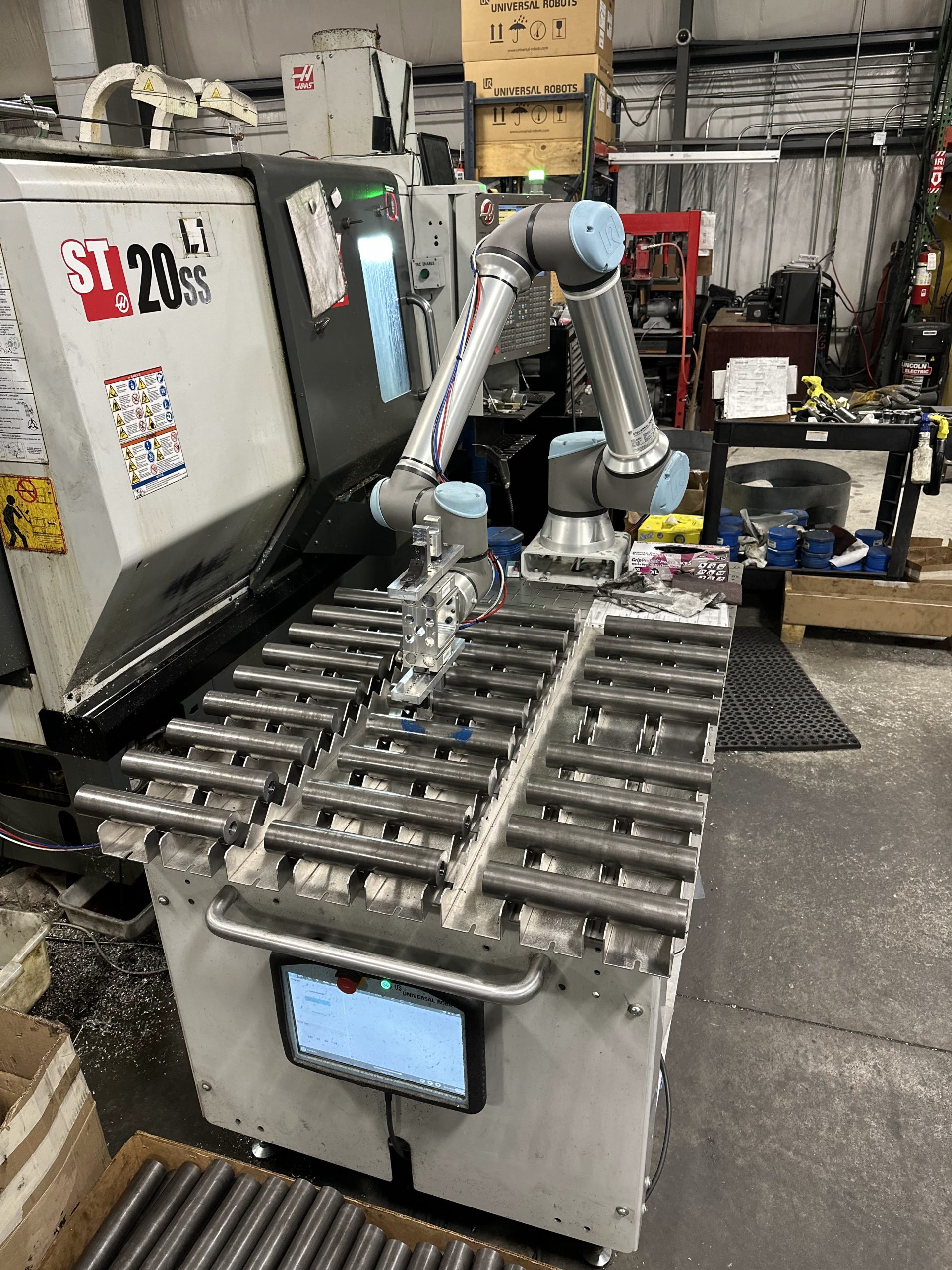

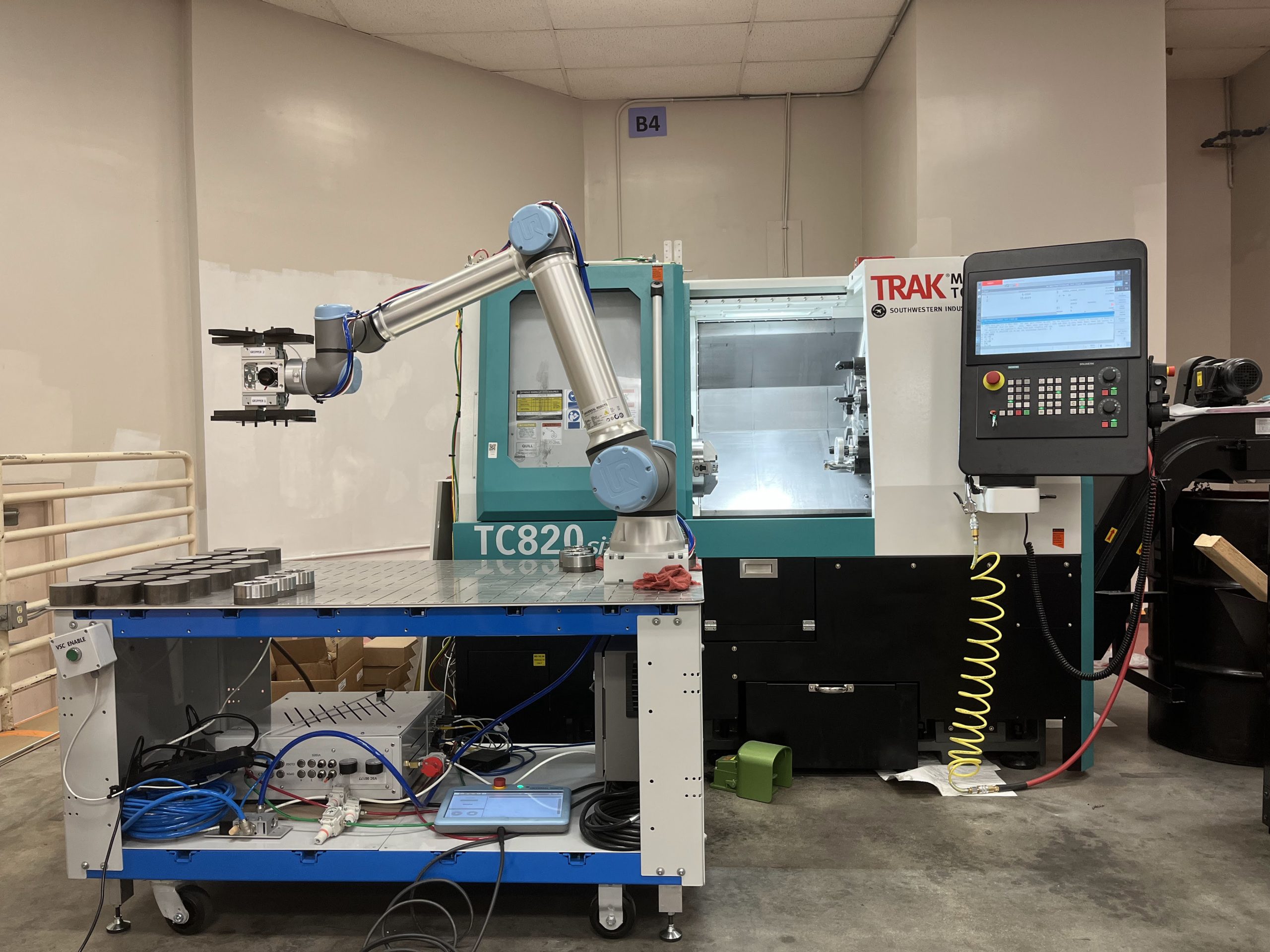

The total package for CNC Lathe Automation. Click on the Purchasing Options tab for details on system types and what is included. System options include:

• VersaCart
  (VersaCart product page)
• Visual Infeed – option for bolting on grid plate or
  locators
• DuoGrip Gripper with
  wrist blow-off – includes puck fingers for up to 4″ diameter parts (optional large puck fingers available for parts up to 8.25″)
• Accu-Z Spring Loaded Z-Push Tool
• VersaBuilt System Controller (VSC) – with CNC communication and pneumatic control
• Easy-to-use User Interface
• Software for complete CNC machine tending automation, including unlimited part program storage, troubleshooting tools, remote support, and custom settings
• Online connectivity for remote support and software updates
• New part introduction design and process support included for the life of the product
• 1-Year warranty per Terms and Conditions of sale
• Optional
  Shaft Gripper Fingers and shaft infeed

*See Purchasing Options for accessories or substitutions.

Purchasing Options

Click here for pricing

Lathe Automation System

Automation System

• Automation System 1300 w/ DuoGrip 400 – P/N 5009873
• Automation System 1300 w/ DuoGrip 2000 – P/N 5014028
• Automation System 1700 w/ DuoGrip 400 – P/N 5014029
• Automation System 1700 w/ DuoGrip 2000 – P/N 5014030

System Options

• Large Puck Fingers (parts up to 8.25″ diameter)
• Regrip Station for Pucks
• Shaft Fingers and Shaft Infeed – P/N 5011159
• Oversized Visual Infeed for VersaCart – P/N 5010264
• VersaCart Anchor Kit – P/N 5011095
• Dual Safety Scanner Package for MAS/LAS – P/N 5011597

CNC Door Openers

• VersaDoor Single Door 24″ – P/N 5007494
• VersaDoor Single Door 30″ – P/N 5006080
• VersaDoor Single Door 40″ – P/N 5006549
• VersaDoor Double Door 2x 24″ – P/N 5007619
• VersaDoor Double Door 2x 30″ – P/N 5007621
• VersaDoor Double Door 2x 40″ – P/N 5010762

Door Sensor Kits

• VersaDoor Sensor Kit Single (M8 Connector) – P/N 5007633
• VersaDoor Sensor Kit Single (Flying Leads) – P/N 5007644

Related Products

Related Products

•
  Robot2CNC Basic Edition – Haas/Fanuc CNC Controls

•
  Robot2CNC Advanced Edition – Mill/Lathe

•
  VersaDoor

•
  VersaCart 1300

•
  DuoGrip Gripper


EXAMPLE APPLICATIONS

Videos

•
  Lathe Automation System – Shaft Loading Haas ST-10

•
  Lathe Automation System – Shaft Loading Haas ST-20 (short)

•
  Lathe Automation System – Puck Loading Haas ST-20 (short)

•
  Lathe Automation System – Table Calibration


CAD Files and Images

• Lathe Automation System – Puck setup with custom infeed for 1.18″ diameter x 4.75″ length (
  CAD Image,
  CAD File)
• Lathe Automation System – Puck setup with custom infeed for 2.75″ diameter part (
  CAD Image,
  CAD File)
