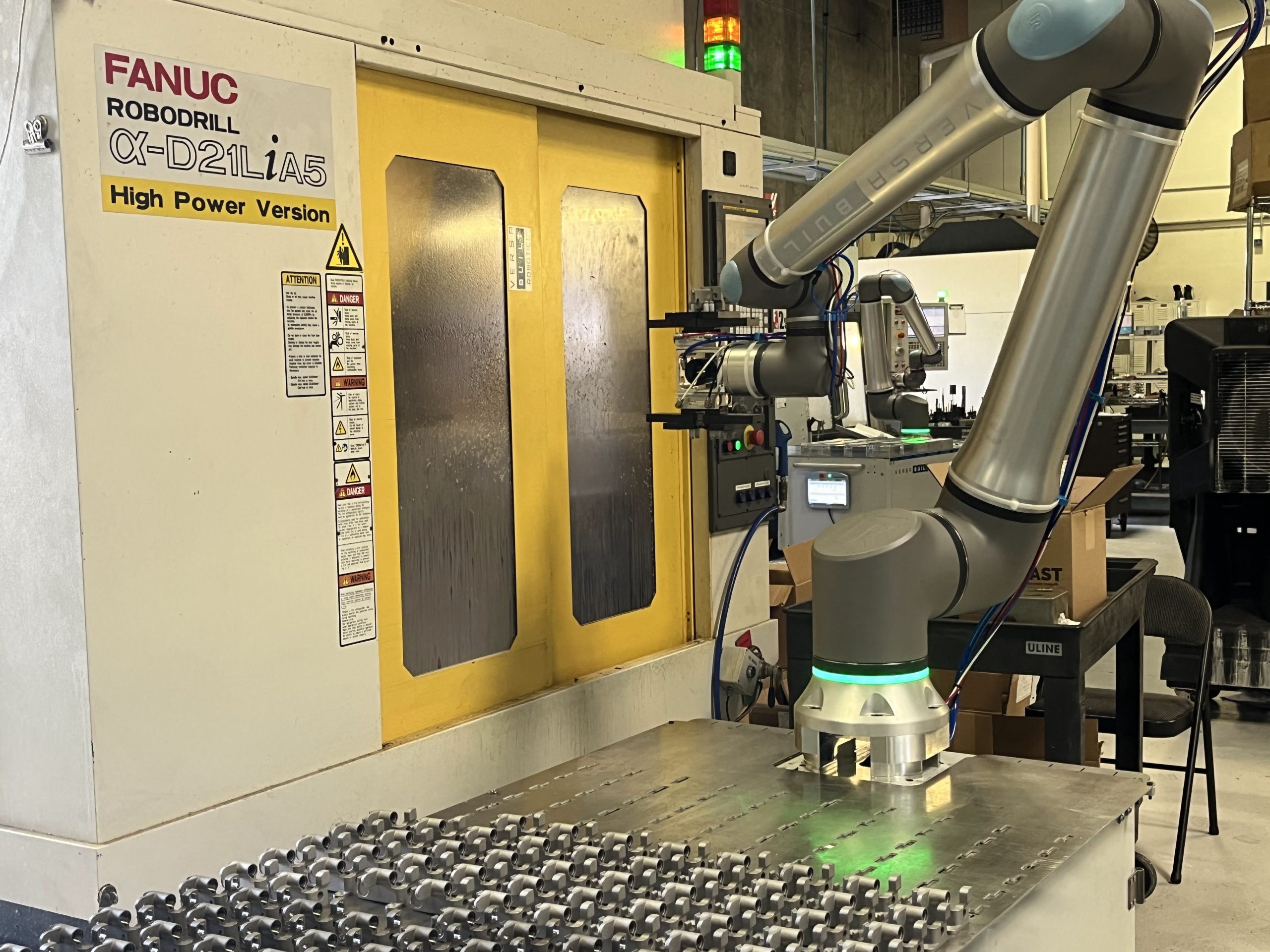

Automate your CNC milling machine with a standard automation system that requires no robot expertise.

VersaBuilt’s Mill Automation System with DuoGrip is a powerful, ready-to-install solution created to improve shop efficiency, alleviate labor shortages, and provide peace of mind to shop managers and owners.

Designed for robust and reliable processing, the system delivers fast part transfers for single-operation parts and high efficiency for applications with short cycle times.

Whether you are automating high-mix production or dedicated-part machining, the Mill Automation System with DuoGrip provides a practical, straightforward automation experience at an affordable price.

Key Advantages

No Robot Programming Required

Forget the complexity of traditional robot programming. The VersaBuilt system eliminates the need for specialized robot-programming expertise.

An intuitive, web-based user interface allows you to create and save part information by completing a simple form. Enter the part size, weight, and process options, load your raw material, and press Cycle Start—it is that simple.

Perfect for Fast Transfers and Short Cycle Times

Equipped with VersaBuilt’s double-headed DuoGrip gripper, the system is optimized for fast loading and unloading.

This makes it highly efficient for single-operation parts and for multi-operation parts processed with an optional Regrip Station.

Ready to Produce in 1 to 2 Days

The Mill Automation System with DuoGrip can be installed and running parts in just one to two days.

It is a ready-to-go product designed by machinists, for machinists, helping you get automation into production faster than a traditional custom-engineered system.

In-Depth Training and Support

The system includes in-depth training courses tailored to operators, machinists, and installers, helping your team become ready to automate as quickly as possible.

Included remote support and ongoing software updates give your team continued access to VersaBuilt expertise while helping optimize your shop’s automation performance.

System Specifications and Capabilities

Supported Robot Models

• Universal Robots: UR10e, UR20, and UR30
• FANUC CRX: CRX-10iA/L, CRX-20iA/L, and CRX-30iA

Application Flexibility

• Horizontal and vertical CNC mills
• 3-axis, 4-axis, and 5-axis applications
• Single-operation processing
• Multi-operation processing with an optional Regrip Station

What’s Included in the Standard System?

Every standard Mill Automation System with DuoGrip comes fully equipped with the following core components:

• VersaCart: Available in 1300 or 1700 models and equipped with a durable stainless-steel Visual Infeed.
• DuoGrip Gripper: Choose between the DuoGrip 400 and DuoGrip 2000 models.
• VersaBlast Wrist-Air: An integrated air amplifier that clears chips and coolant directly from the CNC workholding.
• CNC Push Tools: Includes both Y-Push and Z-Push spring-loaded tools for precise part positioning and seating inside the CNC.
• VersaBuilt System Controller—VSC: The central hub that manages CNC communication, pneumatic control, and the easy-to-use operator interface.
• Complete Software Suite: Includes unlimited part-program storage, troubleshooting tools, and built-in online connectivity for remote support and software updates.

Optional Accessories and Upgrades

Tailor the system to your specific manufacturing requirements with these optional additions:

• MultiGrip Vises: Vises are sold separately for DuoGrip Mill Automation Systems. Available options include MultiGrip 2000 and MultiGrip 4000 vises, with optional steel tops.
• VersaCart Regrip Station: Allows the robot to flip parts for continuous two-operation processing.
• Vise Pressure Doubler and Two-Vise Subplates: Expand available clamping power and CNC workholding-layout options.
• VersaDoor CNC AutoDoor: A simple and reliable pneumatic door opener for unattended and lights-out automated operation.
• Safety Scanners and Anchor Kits: Dual safety-scanner packages and VersaCart anchor kits help maximize floor safety and maintain a secure installation.
• Oversized Visual Infeeds: Increase raw-material capacity on the VersaCart for longer production runs or larger parts.
