Mill Automation System with MultiGrip

Automate your CNC milling machine with a standard automation system that requires no robot expertise

Mill Automation Datasheet & Manuals



Discuss Your Needs With an Expert

Automate with Ease

VersaBuilt customers typically report a doubling of production output using half the labor.

FEATURES
Purchasing Options
Example Applications
FEATURES

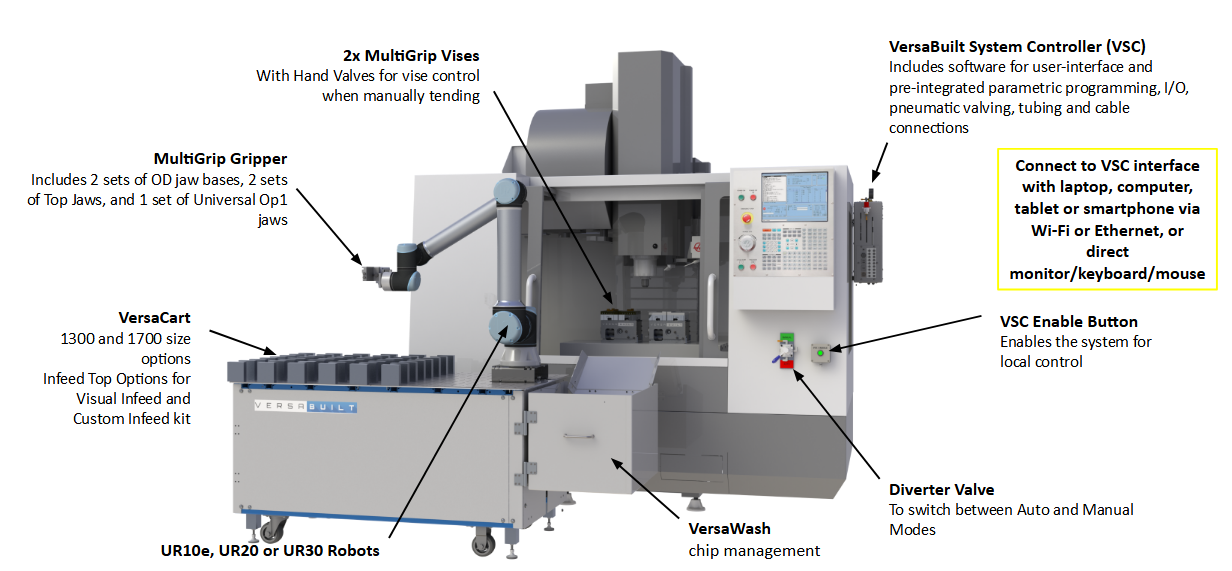

Included with the Mill Automation System

The total package for CNC Mill Automation. Click on the Purchasing Options tab for details on system types and what is included. System options include:

• VersaCart
  (VersaCart product page)

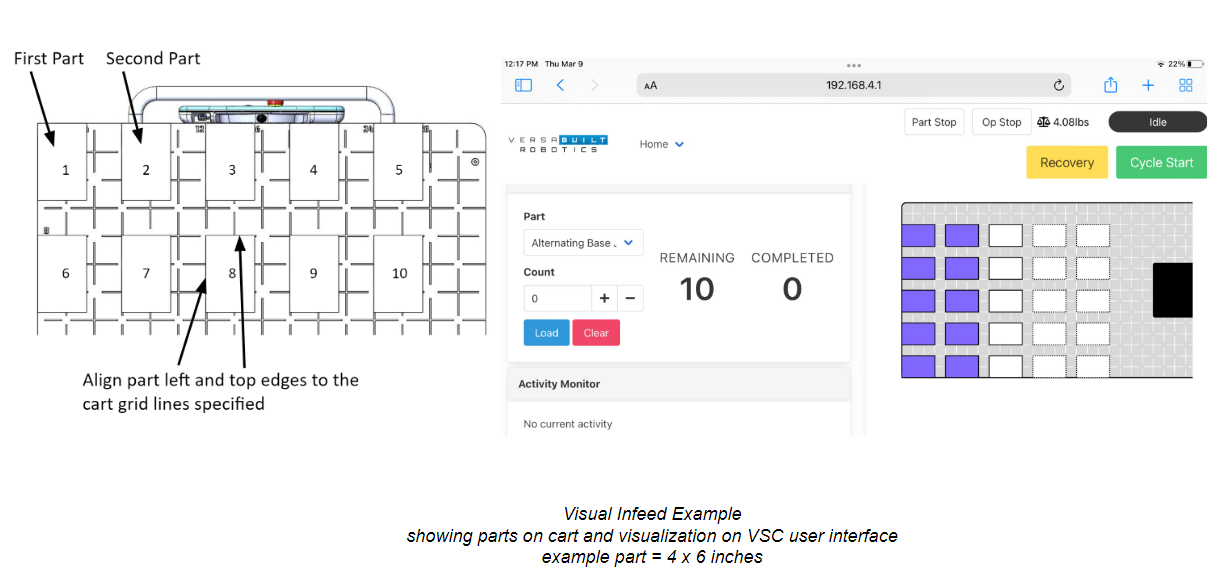

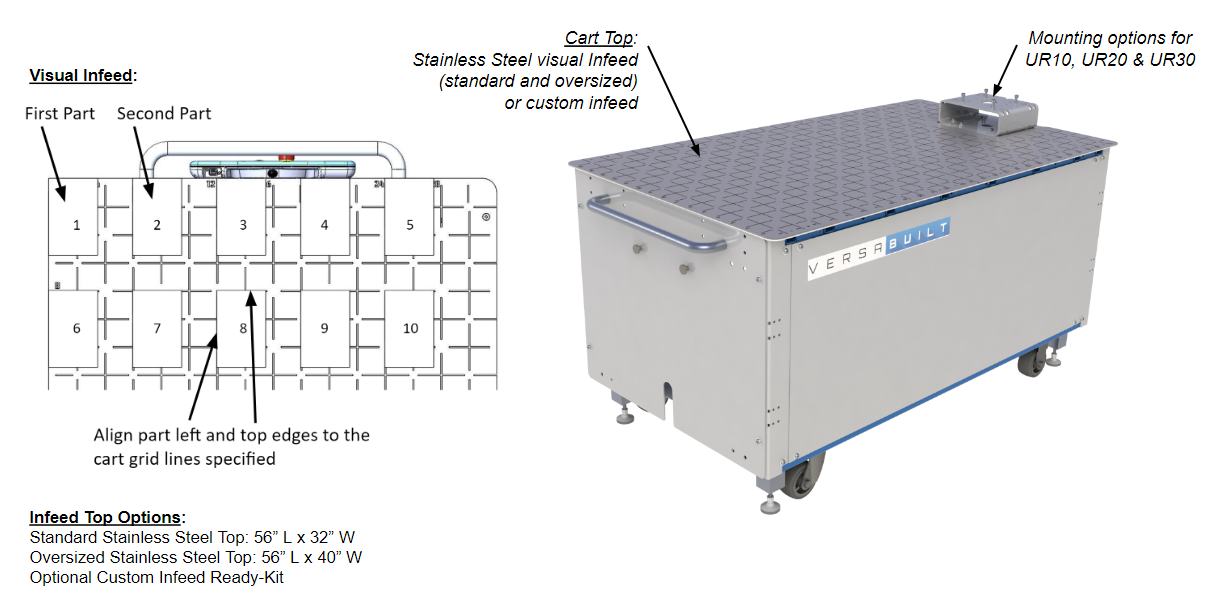

• Visual Infeed – option for bolting on grid plate or locators

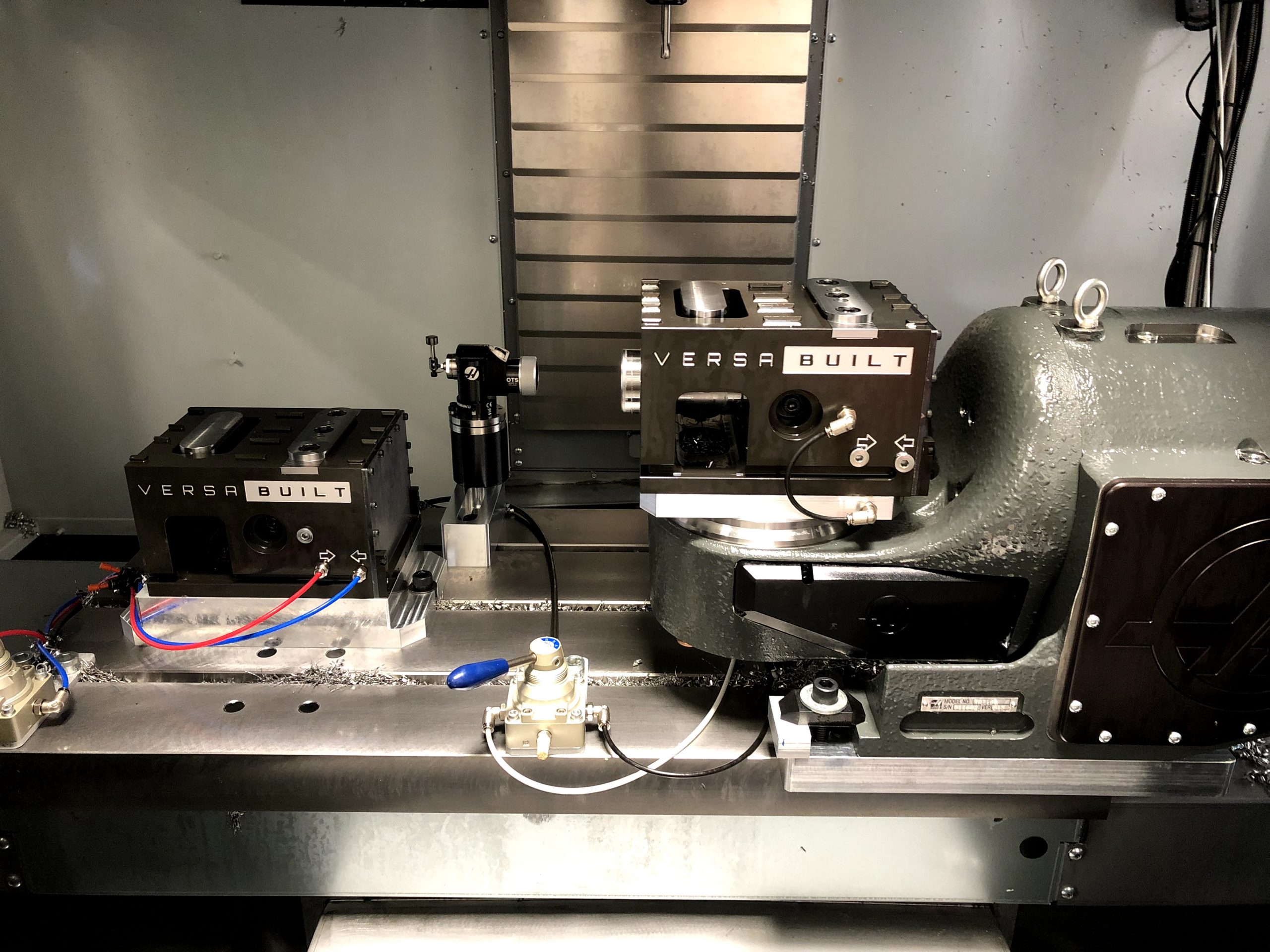

• 2x MultiGrip Vises
  (details) *included with MultiGrip Systems
• Vise sensors (installation and setup video)
• MultiGrip Gripper
• MultiGrip Jaws Starter Kit (jaw blanks for 1 to 2 parts included)

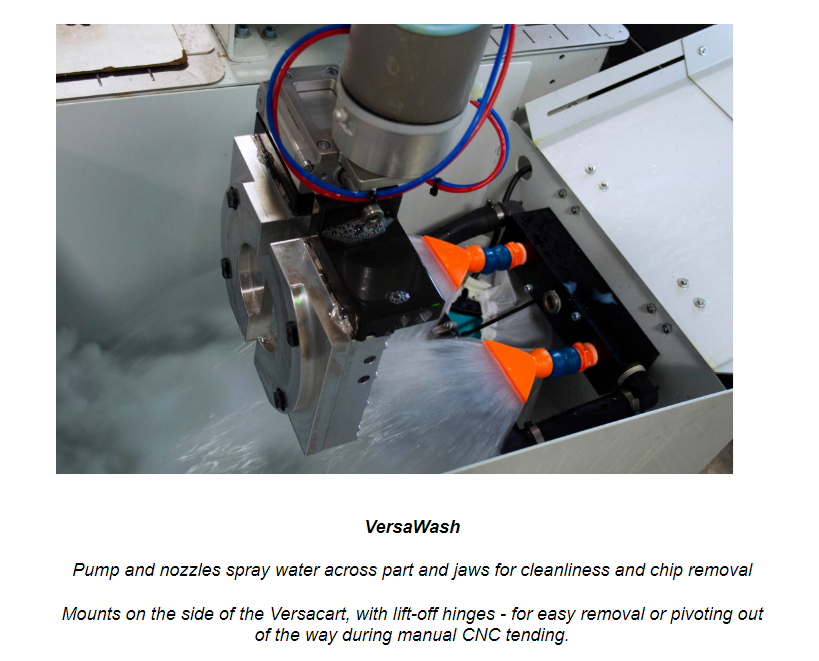

• VersaWash (jaw and chip wash)

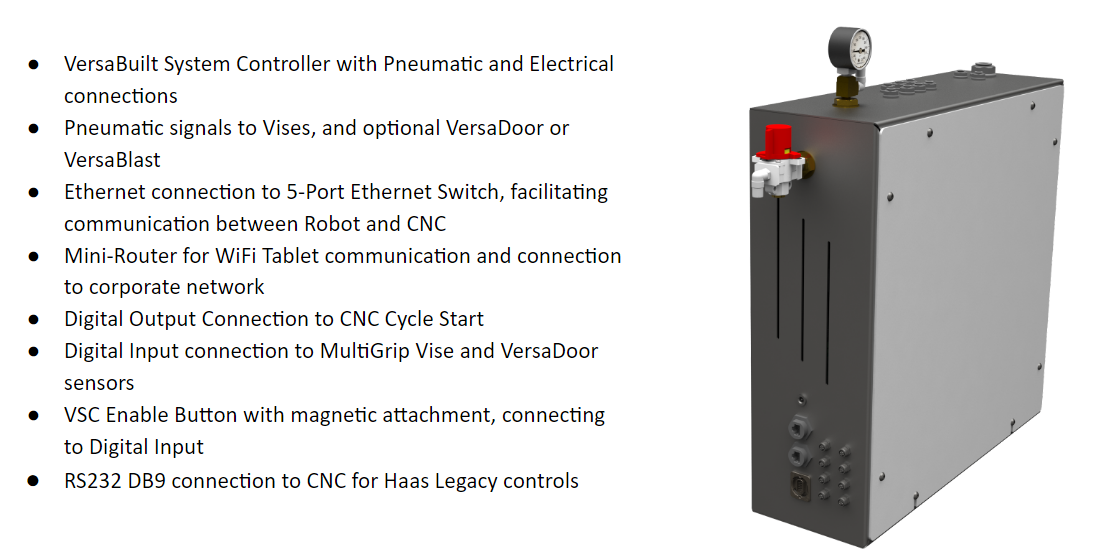

• VersaBuilt System Controller (VSC) with CNC communication and pneumatic control
• CNC Tools for part positioning and seating (Y-Push and
  Z-Push)
• Easy-to-use User Interface
• Software for complete CNC machine tending automation, including part program storage, troubleshooting, remote support, and custom settings
• Online connectivity for remote support and software updates
• 1-year warranty per Terms and Conditions of sale

*See Purchasing Options for accessories or substitutions.

Purchasing Options

Click here for pricing

Mill Automation System

• Automation System 1300 w/ MultiGrip – P/N 5008381
• Automation System 1700 w/ MultiGrip – P/N 5014027
• Mill Automation System CNC Add-on Kit – P/N 5009509

System Options

• MultiGrip 2000 Vises (lower profile) – P/N 5009518
• Vise Pressure Doubler (options for 1, 2, or 3 vises)
• MultiGrip Vises w/ Steel Tops
• MultiGrip 2-vise subplate – P/N 5010017
• MultiGrip Jaw and Jaw Top variations
• Dual Safety Scanner Package for MAS/LAS – P/N 5011597
• VersaCart Anchor Kit – P/N 5011095

CNC Door Openers

• VersaDoor Single Door 24″ – P/N 5007494
• VersaDoor Single Door 30″ – P/N 5006080
• VersaDoor Single Door 40″ – P/N 5006549
• VersaDoor Double Door 2x 24″ – P/N 5007619
• VersaDoor Double Door 2x 30″ – P/N 5007621
• VersaDoor Double Door 2x 40″ – P/N 5010762

Door Sensor Kits

• VersaDoor Sensor Kit Single (M8 Connector) – P/N 5007633
• VersaDoor Sensor Kit Single (Flying Leads) – P/N 5007644

Accessories

• 2x Vise, 3-axis Subplate – P/N 5010017
• Z Push Tool – P/N 5002394
• Y Push Tool – P/N 5002202

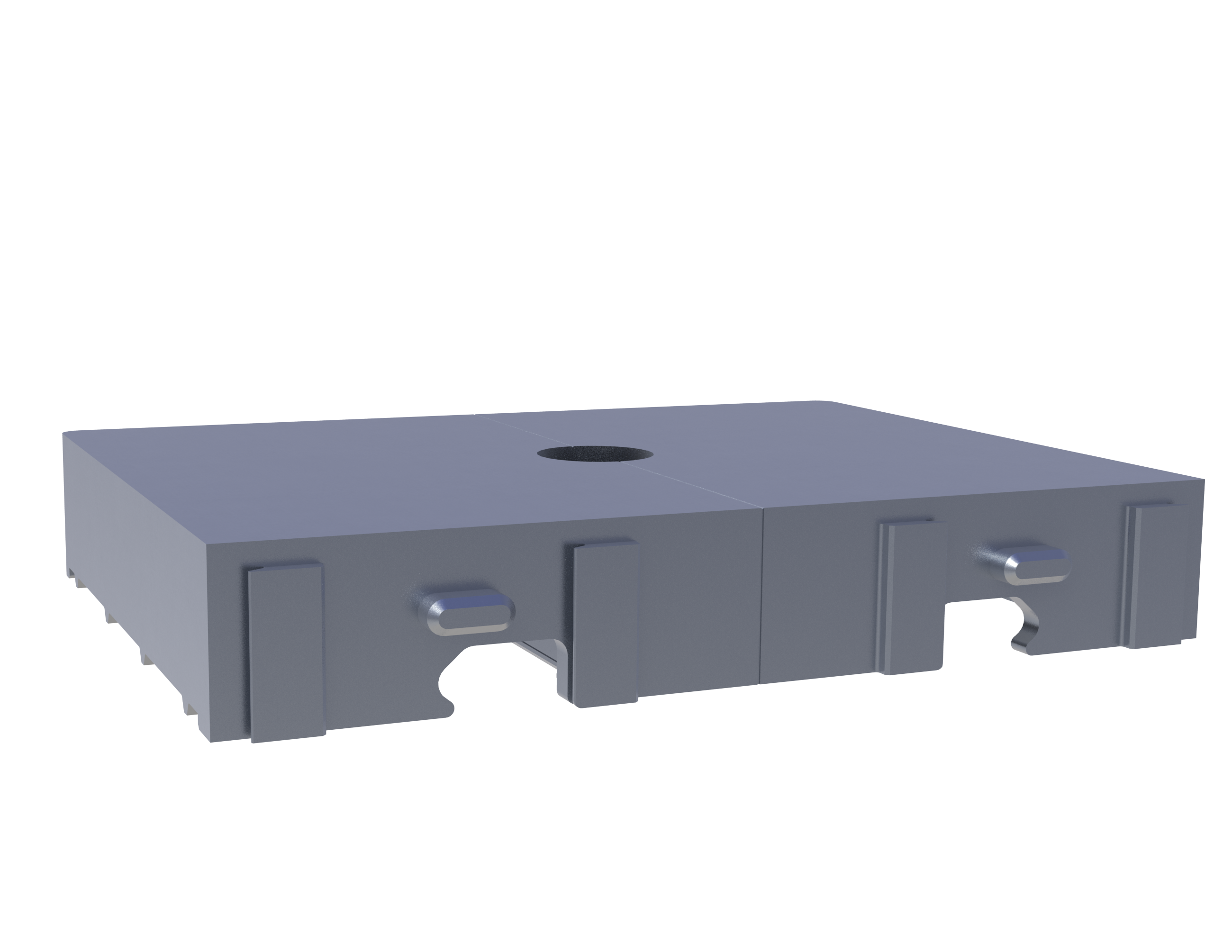

• Calibration Jaws – P/N 5010283 (CAD)

Example Applications

Videos

•
  Mill Automation System w/ UR10e – 2 Op Part 3-axis processing in Haas DT-1 with MultiGrip

•
  Mill Automation System w/ UR10e – Customer Example – 5-axis part in Haas VF2 with MultiGrip

•
  Mill Automation System w/ UR20 and VF2 5-axis parts

•
  Y and Z Push Tools


CAD Files and Images

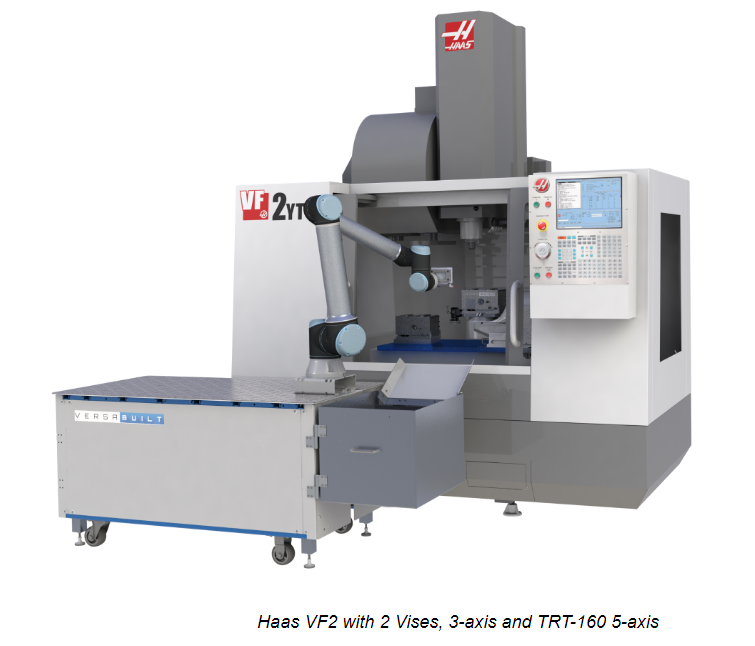

• Mill Automation System – VF2 w/ 3 & 5-axis setup
  •
    CAD Image

  •
    CAD File

  •
    Picture – 3-Axis + 5-Axis Example

  •
    Picture – UR20 System

• Mill Automation System – UMC-750 w/ 2-vise, pedestal setup
  (CAD Image,
  CAD File)
• Mill Automation System – UMC-500 w/ 2x MultiGrip 2000 Vise setup
  •
    CAD Image

  • CAD File
